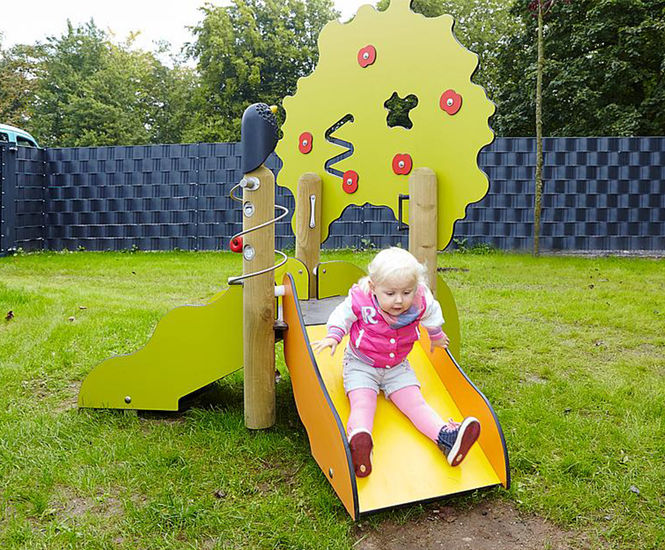

Play unit Apple Tree by eibe is a playground structure made from pressure-impregnated softwood and high-pressure laminate (HPL), designed for children from 1 year. Includes climbing ramp, belly board, tree backdrop, staircase, platform, and play spiral. Minimal space required is 5.01 x 4.46 x 2.20 m, with a freefall height of 40 cm.

Features and Benefits

  • Made from FSC-certified pressure-impregnated softwood and HPL for durability

  • Includes multiple play elements: climbing ramp, spiral, and platform

  • Stainless steel and galvanised steel components for weather resistance

  • Designed for young children with a low freefall height

  • Pre-assembled elements for easier installation

  • Impact protection area of 7.0 m²

Applications

  • Public playgrounds

  • Nurseries and kindergartens

  • Parks and recreational areas

  • School outdoor spaces

Technical data

Material

softwood pressure-impregnated

Minimal space

5,01x4,46x2,20 m

Fall protection netto

7,0 m²

Freefall height

40 cm

Biggest part

114x130x1,5 cm

Heaviest part

23 kg

Foundation level

ET 400

Foundation

9x CF or 3x PFs + 3x PFr

Soil quality

at least lawn

Catalogue index

minimondo Play unit Apple Tree

Physical attributes

Minimal space required is 5.01 x 4.46 x 2.20 m. Freefall height is 40 cm. Largest part measures 114 x 130 x 1.5 cm. Heaviest part weighs 23 kg.

Materials

Made from pressure-impregnated softwood, high-pressure laminate (HPL), stainless steel, galvanised steel, and polyethylene. Posts are FSC-certified softwood with chromate-free treatment.

Installation

Requires two people and approximately 1.5 hours for assembly. Needs foundations: 9x CF or 3x PFs + 3x PFr. Suitable for installation on lawn.

Sustainability

CO2 emissions per unit are 325.9 kg. Contains 17% renewable raw materials and 13% recycled material. Circular Product certification by GKM GmbH.
