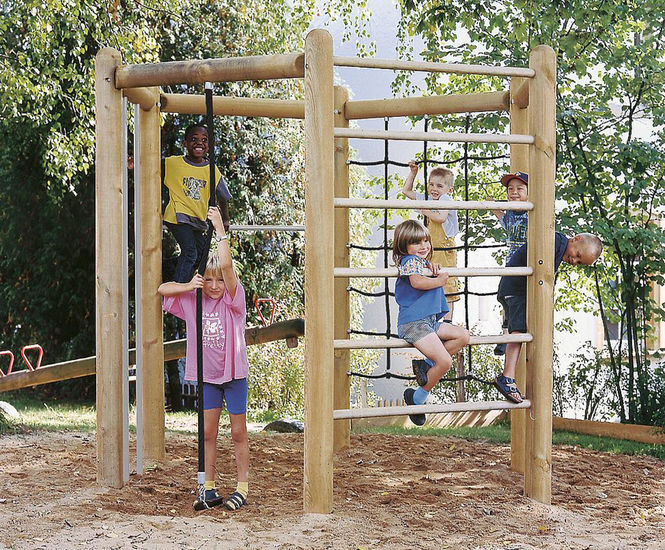

eibe ibondo original Hexagonal System 270 is an outdoor play and fitness unit made from pressure-impregnated softwood, designed for children’s physical development and adult exercise. Includes climbing net, rope, horizontal bars, and fireman’s poles, with a compact hexagonal layout for playgrounds and recreational spaces.

Features and Benefits

  • Hexagonal layout maximises play and exercise options in a compact footprint

  • Includes climbing net, rope, horizontal bars, and fireman’s poles for varied activities

  • Made from FSC-certified, pressure-impregnated softwood with galvanised steel components

  • Suitable for both children and adults

  • Certified by TÜV for safety

  • High share of renewable and recycled materials

Applications

  • Public playgrounds

  • School outdoor areas

  • Parks and recreational spaces

  • Outdoor fitness zones

Technical data

Material

softwood pressure-impregnated

Minimal space

7,17x6,82x2,70 m

Fall protection netto

39,0 m²

Freefall height

265 cm

Biggest part

310x139x14 cm

Heaviest part

140 kg

Foundation level

ET 400

Foundation

7x CF or 7x PFs

Soil quality

at least sand

Catalogue index

Climbing unit Climbing trestle Hexagonal unit

Physical attributes

Unit height 260 cm. Minimum space required 7.17 x 6.82 x 2.70 m. Freefall height 265 cm. Largest part 310 x 139 x 14 cm. Heaviest part 140 kg. Impact protection area 39.0 m².

Materials

Pressure-impregnated softwood, FSC certified. Galvanised and powder-coated steel for bars and poles. Climbing net and rope made from plastic-coated steel cable. Post shoes in galvanised steel. Rung element in ash.

Installation

Requires two people, estimated assembly time three hours. Needs seven concrete or point foundations. Suitable for installation on sand or similar ground.

Accreditations

TÜV product service certified.

Sustainability

CO2 emissions 383.9 kg per unit. 80% renewable raw materials, 16% recycled content. FSC-certified wood. Circular Product certification dashboard available.
