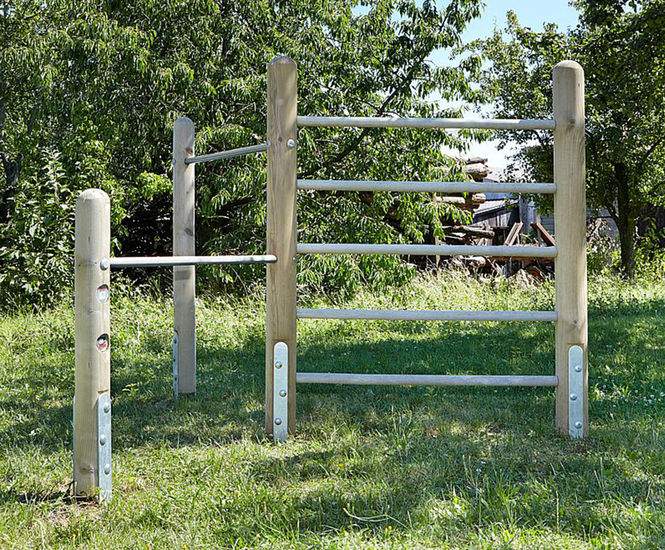

Climbing frame with double horizontal bars by eibe is a play structure designed for children aged 4 and up, supporting a range of gymnastic activities. Made from pressure-impregnated softwood and stainless steel, it includes two horizontal bars and a rung element, with TÜV certification and a focus on sustainability.

Features and Benefits

  • Double horizontal bars for varied gymnastic use

  • Made from FSC-certified softwood and stainless steel

  • Pressure-impregnated timber for outdoor durability

  • Includes galvanised steel post shoes for stability

  • Certified to TÜV safety standards

  • Suitable for children from 4 years

  • Low CO2 emissions and high share of renewable materials

Applications

  • Playgrounds

  • Schools

  • Parks

  • Recreational outdoor spaces

Technical data

Material

NH kdi

Minimal space

504x534x323 cm

Fall protection netto

20,5 m²

Freefall height

143 cm

Biggest part

250x140x14 cm

Heaviest part

70 kg

Foundation level

FL 3

Foundation

4x CF

Soil quality

at least sand

Catalogue index

Wall bars

Physical attributes

Minimum space required is 504 x 534 x 323 cm. Freefall height is 143 cm. Largest part measures 250 x 140 x 14 cm, heaviest part is 70 kg. Impact protection area is 20.5 m².

Materials

Made from pressure-impregnated softwood (FSC certified), ash for rungs, stainless steel horizontal bars, and galvanised steel post shoes.

Installation

Requires four concrete foundations (4x CF) and at least a lawn or sand base. Assembly by one person in approximately two hours.

Sustainability

CO2 emissions per product are 247.3 kg. Contains 62% renewable raw materials and 35% recycled material. Circular Product certification by Gesellschaft für Klimaschutz München GmbH.

Accreditations

TÜV product certification for safety. FSC certification for timber.
