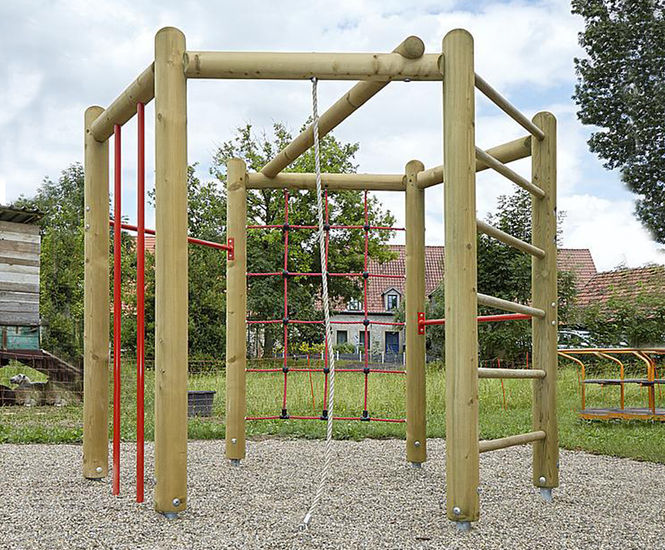

eibe ibondo original Hexagonal System 210 is a compact outdoor play and fitness structure made from pressure-impregnated softwood, designed for children’s physical development and adult exercise. Includes climbing, gymnastics, and training elements in a hexagonal layout, with steel and timber components for durability and safety.

  • Outdoor play and fitness unit with climbing, gymnastic, and training features

  • Hexagonal design maximises play and training space in a compact footprint

  • Made from pressure-impregnated softwood and galvanised, powder-coated steel for weather resistance

  • Includes rung element, horizontal bars, fireman’s poles, climbing net, and rope

  • Suitable for children from 4 years and adults seeking outdoor exercise

  • Certified to TÜV product safety standards

  • Designed for easy installation with minimal ground requirements

Technical specification

Material

softwood pressure-impregnated

Minimal space

6,37x6,02x2,10 m

Fall protection netto

31,5 m²

Freefall height

205 cm

Biggest part

250x139x14 cm

Heaviest part

120 kg

Foundation level

ET 400

Foundation

6x CF or 6x PFs

Soil quality

at least sand

Catalogue index

Climbing unit Climbing trestle Hexagonal unit

Applications

  • Public playgrounds

  • School outdoor activity areas

  • Parks and recreation spaces

  • Outdoor fitness zones

  • Community centres

  • Residential developments

Dimensions

Minimum space 6.37 x 6.02 x 2.10 m

Freefall height 205 cm

Largest part 250 x 139 x 14 cm

Heaviest part 120 kg

Impact protection area 31.5 m²

Performance

Recommended age group from 4 years

Assembly by 2 people in 3 hours

Materials

Pressure-impregnated softwood (FSC certified)

Ash rungs

Galvanised and powder-coated steel bars and poles

Plastic-coated steel cable net and rope

Galvanised steel post bases

Installation

Requires 6 concrete or point foundations

Suitable for installation on sand or similar soil

Accreditations

TÜV product service certified

Sustainability

CO2 emissions 344.1 kg

78% renewable raw materials

18% recycled material
