The use of reinforced soils is mainly used in areas of fill to support elevated levels. These walls can be vertical with the block wall systems, or have a stone/soil finished batter between 50 and 70 degrees.

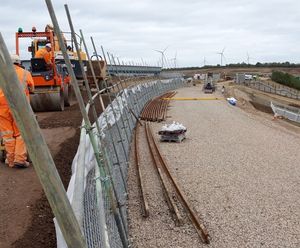

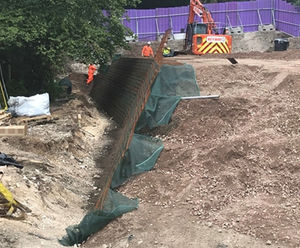

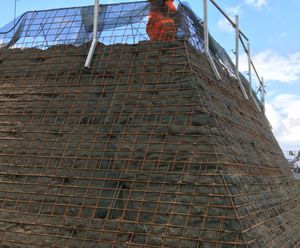

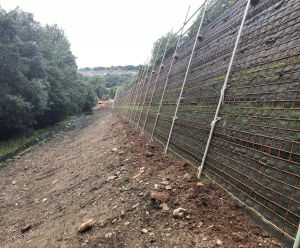

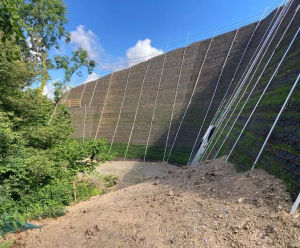

Textomur – Textomur consists of horizontal geogrids or geotextiles typically at 600mm vertical centres within compacted cohesive or granular fill material. The facing to the slopes is formed using a steel mesh ‘formwork’ backed by a geosynthetic facing fabric which retains a layer of topsoil immediately behind the face.

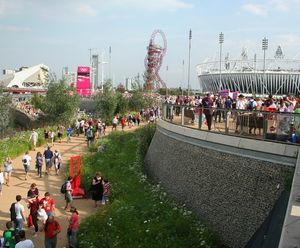

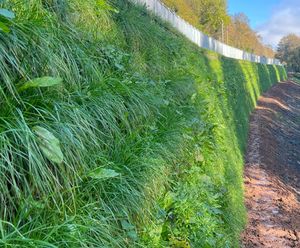

The finished slope can be hydroseeded to establish grass, or planted with appropriate ground cover shrubs. A stone face finish can also be achieved for slopes above 65°. The system has a minimum design life of 60 years.
Can be built with site-won cohesive fill materials. This can generate substantial savings on import of granular fill and muck-away of cohesive arisings.
Can be built with curves, corners, terraces, varying wall heights and steps.

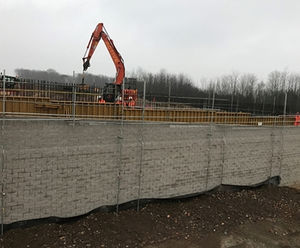

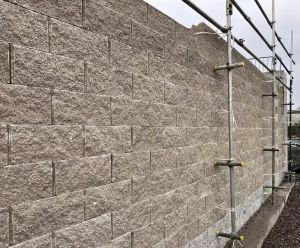

Modular Block - Dry Laid Modular Block retaining wall systems offer affordable solutions to earth retention needs. With a high quality split face finish, they are immediately serviceable.

Concrete Panel – A robust structure that can accommodate high workingand dead loads associated with bridge abutments and other large retaining walls.
