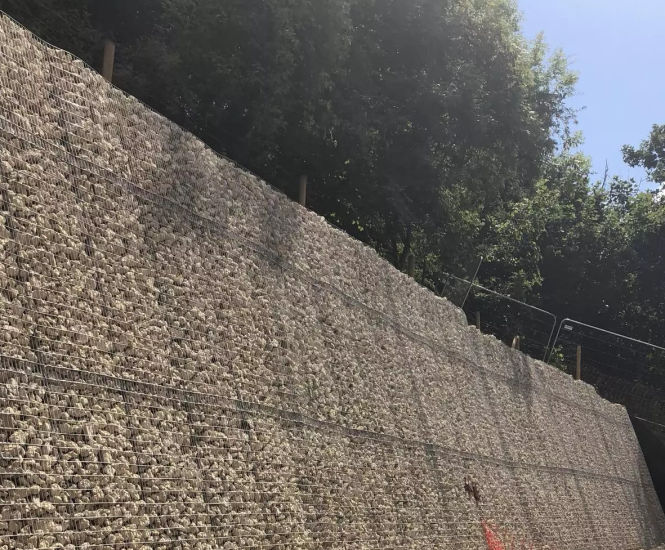

Phi Group Soil Panel system is a facing solution for soil nailed or anchored slopes, made from panels typically 200mm deep, filled with either seeded top soil for a green finish on slopes up to 60 degrees or graded stone for steeper slopes. Protects soil nail components and allows for a high quality, low maintenance finish.

  • Panel system for facing soil nailed or anchored slopes
  • Filled with top soil for natural green finish or stone for maintenance-free option
  • Panels typically 200mm deep
  • Allows deeper planting thickness than some alternatives
  • Protects soil nail elements from exposure
  • Quick and straightforward installation process
  • Integrated installation with soil nailing operations

Applications

  • Facing for soil nailed slopes
  • Anchored slope stabilisation
  • Highway widening schemes
  • Projects needing a high quality face finish

Dimensions

Panel depth 200mm

Installation

Structural back mesh placed over slope and secured with nail plates and nuts; front mesh and diaphragms installed from bottom up; panels filled with top soil or stone as build progresses
