Timber and steel bridges

CTS has extensive experience in the design, manufacture and installation of truss footbridges in a variety of locations across the UK. Bow-string truss bridges can incorporate lighting and decorative features. CTS has designed and fabricated Vierendeel steel trusses in lengths of 5m upwards. This type of truss provides a cleaner elevation, which lends itself to various design options

Cable stay steel bridges offer a distinctive, striking design against any skyline. They are typically used for spans of over 50m in length, which can be achieved with one or two towers. The bridge deck is supported at regular intervals by tensioned, Macalloy bars fixed to the mast, which give a lightweight structural solution. CTS provides a

Steel and timber bridges are one of CTS's most versatile and cost-effective options. They are ideal for bridge spans from 10-30m. Beams: cambered or flat; galvanised, painted or fitted with a timber fascia to give the appearance of an all timber bridge. Parapets: softwood, hardwood, steel or stainless steel

Timber bridges can be made from solid hardwood or softwood, dowel-laminated hardwood, or glue-laminated hardwood or softwood. All timberwork is designed to BS 5400 and BS 5268 or Eurocode 5 with a design live load of 5kN/m2. CTS holdS an FSC certificate for the supply of bridges made with FSC-certified material. Available in kit form

Steel bridges offer an economic solution for spans over 10m and can range up to 100m + long. Steel bridges can add to a landscape, providing a visual landmark. Each style has characteristics which make it most suitable for a particular span, location, aesthetic requirement or budget: types: Vierendeel, Warren, Pratt, Modified Pratt, and Through

CTS Bridges specialises in making concept bridge drawings into a reality and can work from simple sketches to detailed drawings to design and manufacture bespoke bridges to suit client requirements. The company has a wealth of experience in the design and manufacture of a range of structures from smaller ornamental garden bridges up to large-span

Bow string steel truss bridges have an elegant appearance with an arch formation, and can add to a landscape, providing a visual landmark. They imitate many of the attributes of tied arch bridges. These bridges have a simple design and simple construction detailing, which makes them a cost effective alternative to more complex structures. Steel

CTS Bridges produces a comprehensive range of railway bridges in steel, timber or FRP, manufactured under quality controlled conditions. Matching ramps, staircases and lift shaft cladding are also provided. CTS offers an installation service for all of its bridges and structures, over weekends or during night-time closures as necessary. The team

Steel beam bridges are most economical when spanning from 10-25m. Beams can be spliced together for spans over 25m. They are available with cambered or flat beams and the protective system can be either galvanised or painted. A choice of bolted or welded parapets is also offered. CTS steel beam bridges can be delivered fully assembled or in kit

Crossline Bridges are flat bridges with a segmented balustrade. The frames give these bridges a sophisticated-outdoor look. The robust frames are made of CorTen and covered with an FSC hardwood railing. The infill is available in horizontal stainless steel cables or criss-crossed stainless steel balusters. Our team is also happy to contribute

The Twisting Bridge fencing system consists of diagonally set, twisted guard bars. A varied setting angle creates a vivid image when viewing or passing alongside the railing. The fencing has a small opening size of up to 100 mm - 4". Twisting fencing can be made from steel KTL powder coated, blasted stainless steel or untreated CorTen, in

Ornamental bridges are exclusively designed to suit parks, gardens and estates and have been supplied to many private clients, hotels, National Trust, large estates, golf clubs, leisure parks, universities and public parks. Bridges can be made in softwood, hardwood or steel, or a comination of materials. FSC timber is available. CTS offers

The Ona Bridge features a continuous balustrade with a dynamic graphic design created from CorTen or powder coated steel strips. The continuous balustrade is topped with an FSC hardwood handrail. The Ona Bridge can be flat or slightly arched with a maximum span of around 16 m - 52 ft. Standard widths are 2 or 3 m - 6.6 or 10 ft. This is a

CTS Bridges has extensive experience in the design, manufacture and installation of cycleway and bridleway footbridges. The company designs and fabricates these bridges in a variety of styles including all-timber, all-steel, or combinations of steel and timber. The most suitable material depends on the length of bridge required and CTS can give

Bridleway Bridges are made for equestrian routes, with hardwearing, slip-resistant decks that reduce noise to avoid frightening horses. Parapets are usually 1800mm high with close-boarded lower sections, but lower, visually lighter parapet options are available to suit client preferences: bridge for bridleways with horse-friendly design

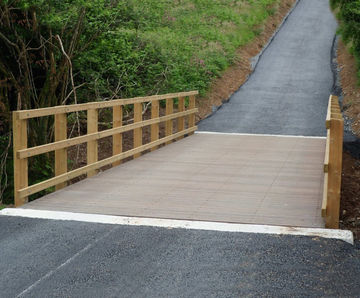

Timber bridges offer a lower cost solution when relatively short spans are needed and for lighter vehicle traffic. The Wooden Bridge Company's can design and manufacture bridges with skews. The company discusses clients' needs with them early in a project and can often offer suggestions to solve issues in a more economic manner

Cycleway Bridges are wider than standard pedestrian bridges and include parapets at 1400mm height. Designed to carry a live load of 5kN/sq m, these bridges meet crowd loading criteria. Deck surfaces can be treated with anti-slip finishes to improve traction: wider bridge design for cycleway use; parapet height set at 1400mm for added safety

Countrywide Access is a family-owned business based in rural Cheshire, whose aim is to provide clients with the best value bridges available in the UK. The company recommends a minimum width of 1.5m for cycle bridges. These bridges usually have a 4-rail parapet which the company can fit to any of its standard range: we believe there is no place

Countrywide Access is a family-owned business based in rural Cheshire, whose aim is to provide clients with the best value bridges available in the UK. There are unique requirements for bridleway bridges and it is best to discuss this early in a project: we believe there is no place for plastics in the environment and do not offer bridges made

Countrywide Access is a family-owned business based in rural Cheshire, whose aim is to provide clients with the best value bridges available in the UK. Pedestrian bridges come in standard widths from 800 to 2000mm. However, many other widths are available as non-standard: we believe there is no place for plastics in the environment and do not

Pedestrian bridges made from hardwood or softwood, designed for a live load of 5kN/sq m and compliant with Eurocodes and Crowd Loading Criteria. Supplied in a wide range of widths and lengths, with kit form or full installation options. Design certificates signed by Chartered Engineers are routinely issued. Multiple parapet and deck treatments

Timber pedestrian, bridle and cycle bridges from Bison have 3 steel structural beams with Redwood deck boards, parapets and handrails. Supplied in kit form, they are designed for ease of installation and as a long-life bridge solution. Span - 3-12m; regular widths - 800, 1200, 1800, 2400mm; crowd loading - 5.0kN per square metre; non-slip inserts
