ASF 114 recycled cast iron bollard

ASF 114 bollards are manufactured in the UK from engineering grade 250 cast iron. Material is 100% recycled and the bollards are completely recyclable.

Click for full image

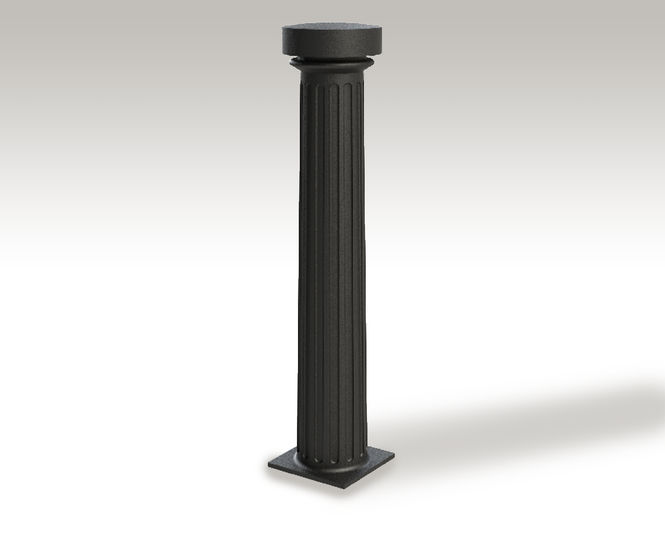

ASF 114 Cast Iron Bollard

1/12

Material	Cast iron
Features	Fixed / static Reflective Removable / lift out
Fixing	Root fixed
Aboveground height (mm)	920
Belowground height (mm)	325
Diameter / width (mm)	195

ASF 114 bollards are manufactured in the UK from engineering grade 250 cast iron. Material is 100% recycled and the bollards are completely recyclable.

Bollards can be adapted to feature chain eyes or accept rails for use as post and rail systems, barriers or cycle stands.

Standard finish: Williamsons Metal Primer
Optional finish: Dulux Weathershield Rust Resistant Paint System applied in most RAL or BS colours
Embellishments: rings and logos can be embellished in Weathershield Gold to provide contrast
Adaptions: bollards supplied in fixed version as standard; removable, fold down or trough fold down available on request
Reflective bands: can be applied in white, red or yellow
Ram raid options: internal thick walled steel sleeves can be used to provide additional ram raid resistance

BIM OBJECTS AVAILABLE

ASF 114 bollards are manufactured in the UK from engineering grade 250 cast iron. Material is 100% recycled and the bollards are completely recyclable.

Bollards can be adapted to feature chain eyes or accept rails for use as post and rail systems, barriers or cycle stands.

Standard finish: Williamsons Metal Primer
Optional finish: Dulux Weathershield Rust Resistant Paint System applied in most RAL or BS colours
Embellishments: rings and logos can be embellished in Weathershield Gold to provide contrast
Adaptions: bollards supplied in fixed version as standard; removable, fold down or trough fold down available on request
Reflective bands: can be applied in white, red or yellow
Ram raid options: internal thick walled steel sleeves can be used to provide additional ram raid resistance

BIM OBJECTS AVAILABLE

Interested in this product?
Call 01484 401414

Go to Supplier website

Downloads

ASF Cast Iron Bollards brochure
4.47MB
Download
ASF 114 Cast Iron Bollard
1pp 258.04KB
Download
ASF 114 3D PDF
1pp 194.7KB
Download
