Architectural Street Furnishings

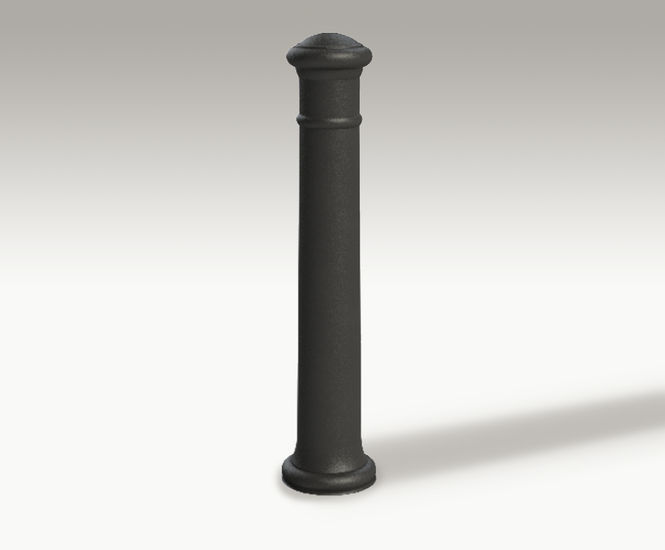

ASF 102 recycled cast iron bollard

ASF 102 bollards are manufactured in the UK from engineering grade 250 cast iron. Material is 100% recycled and the bollards are completely recyclable.
  ASF 102 cast iron bollard
Click for full image

  • ASF 102 cast iron bollard
  • ASF 102 cast iron bollard
  • ASF 102 cast iron bollard
  • ASF 102 cast iron bollard
ASF 102 cast iron bollard
1/12

Material Cast iron
Features Fixed / static
Reflective
Removable / lift out
Fixing Root fixed
Surface / baseplate fixed
Aboveground height (mm) 1000
Belowground height (mm) 300
Diameter / width (mm) 185




ASF 102 bollards are manufactured in the UK from engineering grade 250 cast iron. Material is 100% recycled and the bollards are completely recyclable.

Bollards can be adapted to feature chain eyes or accept rails for use as post and rail systems, barriers or cycle stands.

  • Standard finish: Williamsons Metal Primer
  • Optional finish: Dulux Weathershield Rust Resistant Paint System applied in most RAL or BS colours
  • Embellishments: rings and logos can be embellished in Weathershield Gold to provide contrast
  • Adaptions: bollards supplied in fixed version as standard; removable, fold down or trough fold down available on request
  • Reflective bands: can be applied in white, red or yellow
  • Ram raid options: internal thick walled steel sleeves can be used to provide additional ram raid resistance
  • Meets DDA requiremenS



BIM OBJECTS AVAILABLE


ASF 102 bollards are manufactured in the UK from engineering grade 250 cast iron. Material is 100% recycled and the bollards are completely recyclable.

Bollards can be adapted to feature chain eyes or accept rails for use as post and rail systems, barriers or cycle stands.

  • Standard finish: Williamsons Metal Primer
  • Optional finish: Dulux Weathershield Rust Resistant Paint System applied in most RAL or BS colours
  • Embellishments: rings and logos can be embellished in Weathershield Gold to provide contrast
  • Adaptions: bollards supplied in fixed version as standard; removable, fold down or trough fold down available on request
  • Reflective bands: can be applied in white, red or yellow
  • Ram raid options: internal thick walled steel sleeves can be used to provide additional ram raid resistance
  • Meets DDA requiremenS



BIM OBJECTS AVAILABLE
