| Suitability |
Streets Parks Private gardens |
| Frame material |
Stainless steel (316) |
| Seat material |
Timber / wood |
| Style |
Contemporary |
| Fixings |
Free standing Root fixed Surface / baseplate fixed |
| Seat length (mm) |
1800mm, or to site requirements |
| Seat depth (mm) |
500mm, or to site requirements |
| Aboveground height (mm) |
826mm, or to site requirements |
| Seat height (mm) |
490mm, or to site requirements |
| Belowground height (mm) |
To site requirements |

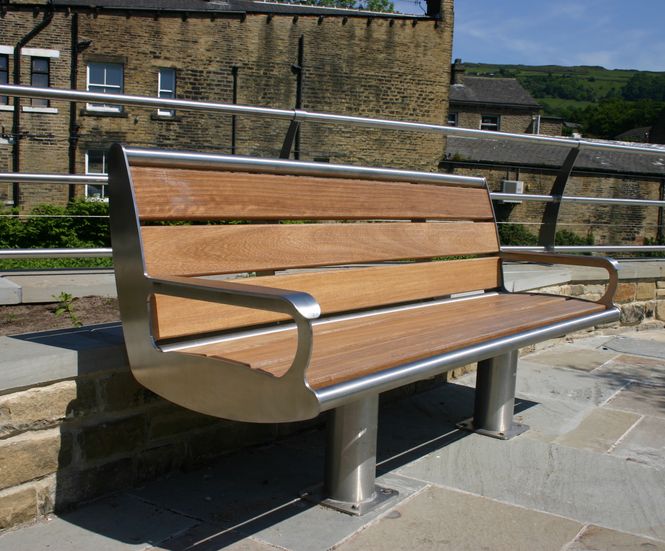

The ASF 6012 seat is manufactured in grade 316 stainless steel from recycled sources (approximately 96%) with a seat and backrest from non-endangered hardwood.
Standard finish is satin brush polished stainless steel and timber treated with Danish Oil - although any finish specification is available at the customer request.
Also available in mild steel which can be supplied galvanised-only or galvanised and powder-coated. Also available in grade 304 stainless steel.
Slats and backrest can be manufactured in steel or stainless steel if required.
The seat frame is fully welded and all mechanical fixings for the timber slats are anti-tamper.
Standard dimensions are typical for public seating (1800mm seat length) but the ASF 6012 can be manufactured to any size, to suit gradients or to follow and curve.
ASF manufactures all products to order in their on-site factory, foundry and engineering works, so all products can be made to meet customers' exact needs.
BIM OBJECTS AVAILABLE
