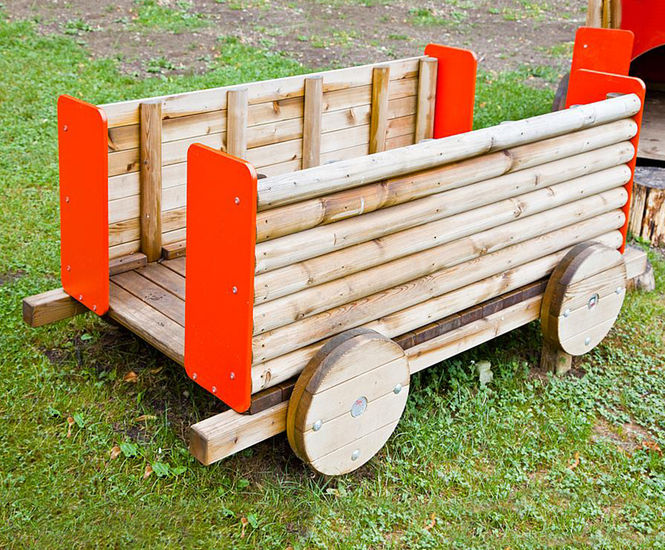

Large train Tender is a play structure designed for children, shaped like a train with a roofed wagon and engine cab, suitable for outdoor playgrounds. Made from FSC-certified softwood and HPL, it includes side walls, platform, and wooden wheels, supporting imaginative play for children aged 3 and up.

  • Play structure in the form of a large train with engine and roofed wagon

  • Made from FSC-certified softwood and HPL panels

  • Includes two side walls, platform bottom, four wheels, and four side parts

  • Suitable for children from 3 years old

  • Requires minimal space of 5.00 x 4.25 x 2.09 m

  • Freefall height of 29 cm for safety

  • Assembly by two people in approximately 6 hours

Technical specifications

Minimal space

5,00x4,25x2,09 m

Fall protection netto

19,5 m²

Freefall height

29 cm

Biggest part

212x110x50 cm

Heaviest part

140 kg

Foundation level

-

Foundation

-

Soil quality

at least lawn

Catalogue index

playo Play unit playo Big railway

Applications

  • Public playgrounds

  • School play areas

  • Parks and recreation spaces

  • Nurseries and early years settings

  • Community outdoor spaces

Dimensions

Minimum space 5.00 x 4.25 x 2.09 m

Biggest part 212 x 110 x 50 cm

Heaviest part 140 kg

Fall protection area 19.5 m²

Freefall height 29 cm

Materials

FSC-certified softwood

HPL panels

Square timber 80 x 80 mm

Halbrundholz 83 x 40 mm

V2A stainless steel screws

Installation

Assembly by two people in 6 hours

Ground must be at least lawn or stone

Requires foundations

Accreditations

Certificate: Z2_010651_0507_Rev00

Sustainability

CO2 emissions 295.7 kg

83% renewable raw materials

9% recycled material
