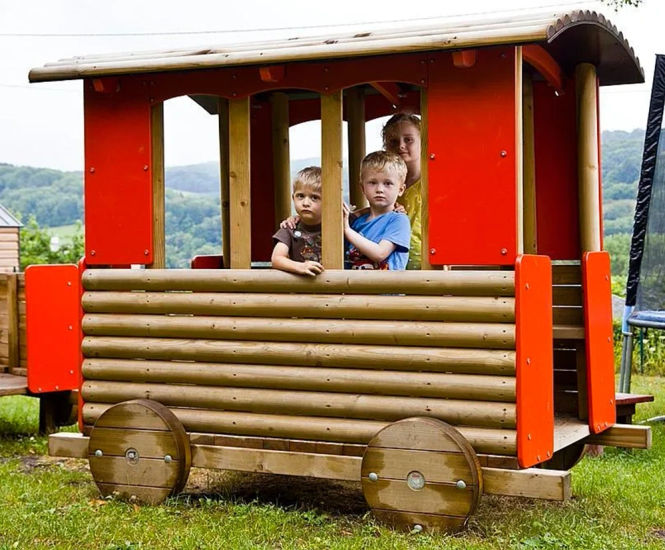

Large train Wagon is a play structure designed for children, shaped as a train with a roofed wagon and engine section. Made from FSC-certified softwood and HPL panels, it accommodates multiple users and encourages imaginative play. Suitable for outdoor installation with a focus on safety and durability.

  • Play structure in the form of a train with engine and roofed wagon

  • Made from FSC-certified softwood and HPL panels

  • Includes side walls, platform, wheels, laterals, setup car, and roof

  • Designed for children aged 3 years and above

  • Requires minimal space of 5.00 x 4.25 x 1.82 m

  • Freefall height of 59 cm for safety

  • Impact protection area of 19.5 m²

  • Supplied as a kit for on-site assembly

Technical specification

Minimal space

5,00x4,25x1,82 m

Fall protection netto

19,5 m²

Freefall height

59 cm

Biggest part

212x110x50 cm

Heaviest part

140 kg

Foundation level

-

Foundation

5x CF

Soil quality

at least lawn

Catalogue index

playo Play unit playo Big railway

Applications

  • Public playgrounds

  • School play areas

  • Parks and recreation spaces

  • Nurseries and early years settings

  • Outdoor family attractions

Dimensions

Minimal space 5.00 x 4.25 x 1.82 m

Biggest part 212 x 110 x 50 cm

Heaviest part 140 kg

Performance

Freefall height 59 cm

Impact protection area 19.5 m²

Materials

FSC-certified softwood

HPL panels 15 mm

Square timber 80 x 80 mm

Halbrundholz 83 x 40 mm

V2A stainless steel screws

Installation

Assembly by 2 persons in 6 hours

Requires 5x CF foundations

Ground must be at least lawn or stone

Sustainability

CO2 emissions 420.7 kg

85% renewable raw materials

5% recycled material

FSC-certified wood

Accreditations

Circular Product certification by GKM GmbH

Certificate Z2_010651_0507_Rev00
