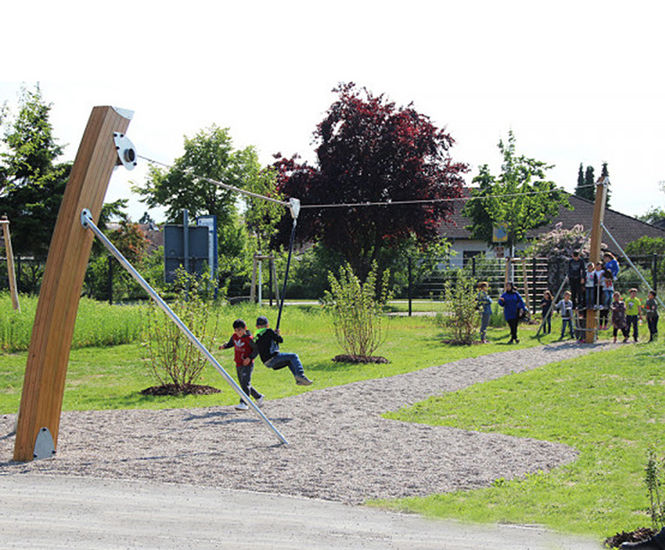

Cableway flying fox in timber for level ground (J511) is a single-user play cableway designed for children aged 6 and above, suitable for level ground installations. Made from laminated wood and stainless steel, it features a 27.69 m length, 4.32 m width, and 4.30 m height, with a free fall height of 1.40 m. Includes a shock-absorbing seat, polyamide trolley wheels, and a braking mechanism for safety.

  • Single-user cableway for children aged 6+
  • Made from oven-cured laminated wood, stainless steel, and polyamide components
  • Shock-absorbing honeycomb rubber seat and galvanised steel chain with plastic coating
  • Polyamide trolley wheels reduce noise during use
  • Braking mechanism keeps trolley stationary when not in use
  • Textured, non-slip HPL platform for safe access
  • Certified by an independent laboratory for play and sports equipment

Applications

  • School playgrounds
  • Parks and public play areas
  • Community recreation spaces
  • Holiday leisure parks and campsites
  • Shopping centre play zones
  • Residential developments

Dimensions

Length 27.69 m

Width 4.32 m

Height 4.30 m

Free fall height 1.40 m

Surface area 111.00 m²

Total weight 618.01 kg

Heaviest element 193.75 kg

Materials

Laminated wood beams (95 mm thick, 200 mm wide, 3.2 m high)

Stainless steel trolley and tubes (40 mm diameter)

Polyamide trolley wheels and fixings

Shock-absorbing honeycomb rubber seat

Galvanised steel chain with plastic coating

Textured, non-slip HPL platform (12.5 mm thick)

Installation

Requires 2 installers

Installation time 10 hours 30 minutes

Concrete volume 3.50 m³

Accreditations

Certified by an independent laboratory for play and sports equipment
