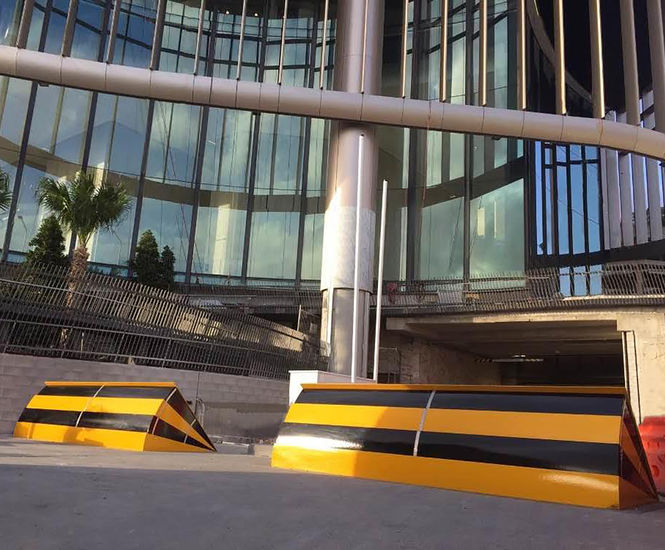

Heald’s Viper is a high-security road blocker designed to stop heavy vehicles at speeds up to 50mph (80kph), with a shallow foundation depth from 380mm. Tested to PAS 68 and ASTM standards, Viper uses a wedge and folding skirt design, is available in hydraulic, electromechanical and manual variants, and is made for rapid installation and high visibility.

  • High-security road blocker for hostile vehicle mitigation

  • Tested to stop a 7.5-tonne truck at 50mph (80kph) with zero penetration

  • Shallow foundation depth from 380 to 460mm for easier installation

  • Electromechanical variant uses no hydraulic oil, reducing environmental impact

  • Manual version requires no power supply, suitable for remote locations

  • Durbar plate and folding skirt reduce slip risk and debris collection

  • Multiple wedge widths from 1.8 to 4m

  • Cycle tested to 200,000 operations for reliability

Applications

  • Critical infrastructure protection

  • Government and military sites

  • Airports and transport hubs

  • Commercial and industrial premises

  • Public spaces requiring vehicle access control

  • Remote or off-grid locations

Dimensions

Raised height: 1050mm

Wedge width: 1.8-4.0m

Foundation depth: 380-460mm

Performance

Stops 7.5-tonne vehicle at 50mph (80kph)

Operating speed approximately 6 seconds

Cycle tested to 200,000 operations

Zero penetration rating

99.5% uptime on major high-risk sites

Colours

Standard finish in yellow and black stripes

Other colour options available

Finish

Durbar plate for slip resistance

Options and variations

Hydraulic, electromechanical and manual operation

Emergency Fast Operation (EFO) option

Electromechanical Viper – 7.5T @ 50mph (80kph)

The World’s first Electromechanical Roadblocker that’s shallow mount, crash rated to 50mph (80kph) and has a raise height of 1050mm.

Drive Operation:

Electromechanical Drive (battery backup and manual override supplied as standard).

The electromechanical Viper is available as either an array or a singular unit. Due to the EM drive unit the Viper uses less electricity to operate and requires a small cabinet, which can be positioned at a greater distance from the products than its hydraulic counterpart, reducing the carbon footprint & spatial footprint.

The electromechanical Viper can run off a three phase 20amp supply for both standard and EFO (Emergency Fast Operation) versions.

Standard operation speed: 6 seconds

EFO operation speed: 1.5 seconds

Performance Ratings:

ASTM: ASTM 2656-07 M50:P1

PAS68: PAS68:2010 V/7500[N3]/80/90: 0/24.6

Installation

Shallow mount design for rapid installation

Movable slotted front plate to minimise gaps

Accreditations

PAS 68 tested

ASTM tested

Sustainability

Electromechanical variant uses no hydraulic oil, reducing risk of spills and environmental contamination

Smaller roadside cabinet reduces material use and carbon footprint
