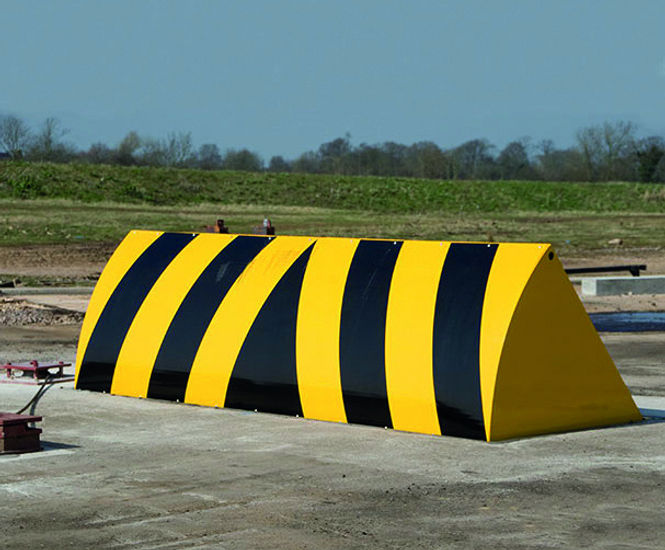

HT1 Commander automatic road blocker is a PAS 68-tested security barrier made from reinforced steel, designed to stop a 30-tonne truck at 80kph and remain operational after impact. Suitable for high-security sites, it stands 1165mm high and is installed without a pre-cast pit or extra rebar, with remote or Hydra system control and fast emergency operation.

  • High-impact security barrier for vehicle access control

  • PAS 68-tested to stop a 30-tonne truck at 80kph with zero penetration

  • Remains fully functional after crash test impact

  • Quick installation with no pre-cast pit or additional rebar required

  • Operated by remote push button or Hydra control system

  • Emergency Fast Operation raises barrier in approximately 1.8 seconds

  • Top access hatch for easy maintenance

  • 99.5% uptime on major high-risk sites

Applications

  • Critical infrastructure protection

  • Government buildings

  • Airports and transport hubs

  • Military and defence sites

  • Data centres

  • High-profile commercial premises

  • Event venues requiring temporary high security

Dimensions

Raised height: 1165mm

Wedge width: 3 or 4m (4m secures up to 6.4m opening)

Foundation depth: 1500mm

Performance

PAS68:V/30000[N3]/80/90: 0.0/6.9

Operating speed: 6 seconds (standard), 1.8 seconds (EFO)

Withstands 20-tonnes per axle (120-tonnes for 6-axle truck)

Zero penetration in crash tests

Fully operational after impact

Materials

Made from hot dip galvanised steel

Reinforced steel plate

Colours

Can be painted to any solid or patterned colour

Finish

Hot dip galvanised for corrosion resistance

Options and variations

Hydra control system

Emergency Fast Operation

High security lock-out valves

Anti-sever burst valves

Large size LED lights

Synthetic oil

Lockable inspection cover

Installation

No pre-cast pit or additional rebar required

No steel reinforcement needed in concrete

Multiple ducting and drainage connection points

Top access hatch for maintenance

Accreditations

PAS 68 crash test certified

Maintenance

Low maintenance due to unique design

Easy access for servicing
