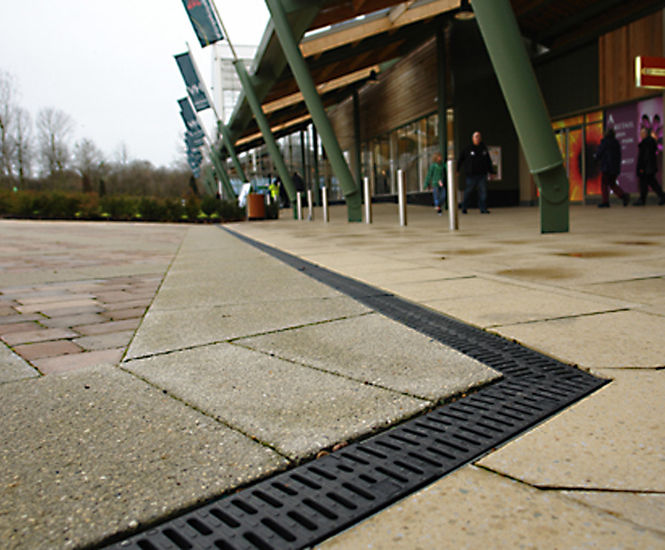

ACO MultiDrain™ MD is a high-strength channel drainage system designed to provide an economical solution for the efficient removal of surface water. It is suitable for a wide range of applications including commercial and residential developments, pedestrian precincts, landscaping and parking areas for all vehicle types.

Available in 100, 150 and 200mm widths and with both sloping and constant depths channels. The channel unit is manufactured from ACO’s high-strength polymer concrete and forms the main component of the system.

A range of traditional drainage gratings, solid covers and cross footpath drainage units are available to ensure a wide variety of applications are catered for.

Gratings are fitted with ACO Drainlock, a bar-less locking device which reduces the risk of blockages and improves hydraulic capacity.

ACO MultiDrain™ MD also has a range of Brickslot gratings to complement installations which require a discreet drainage system. These are available in galvanised or stainless steel and are suitable for use with the 100, 150 and 200mm-wide channels.

A tough and robust channel drainage system, it provides high chemical resistance and the lightweight design ensures quick and easy installation.

As standard, channels are manufactured with UltraSTEEL protective edge rails. With a unique patented design, these provide optimum channel protection and improved bonding between the channel sides and the surrounding pavement material.

The system is fully certificated and CE marked to BS EN 1433:2002 from Load Class A 15 pedestrian areas, up to and including Load Class D 400 suitable for parking of all types of road vehicles*.

*Not suitable for carriageways of public roads or motorways.

Typical applications

  • Threshold drainage

  • Public landscaping

  • Car parking

  • HGV parking

  • Petrol station forecourts

  • Light industrial

  • SuDs

Features

  • Provides an efficient drainage solution for a wide variety of applications

  • Strong and robust V shaped channel design with a range of constant, sloped and shallow depth channels

  • Strong and light weight design, with male and female channel connections to aid accurate installation

  • Channel system available in three channel widths: 100mm, 150mm and 200mm

  • Channel unit manufactured from ACO’s high strength polymer concrete

  • Protective UltraSTEEL galvanised edge rails for improved strength and bonding between channel and surface materials. Also available in stainless steel

  • Strong and light weight design improves stability and anchors product into concrete surround

  • Sealant groove for simple watertight installations

  • ACO Drainlock gratings - this bar-less locking device improves hydraulic capacity and provides for quick and simple installation of gratings

  • Male and female channel connections to aid accurate installation

  • Anti-shunt prevents grating movement once installed

  • Available in galvanised and stainless steel finishes

Benefits

  • System fully certified, UKCA and CE marked to BS EN 1433:2002 Load Class D 400. Not suitable for carriageways of public roads or motorways.

  • V shaped channel bore improves speed of water flow and promotes self cleansing

  • Provides an efficient drainage solution for a wide variety of applications

  • Range of constant, sloped and shallow depth channels

  • Caters for a range of catchment areas

  • Strong and robust channel design

  • Patented UltraSTEEL channel edge rail for improved strength and durability

  • Extensive choice of gratings and accessories for many applications

  • Choice of outlet options, gullies, sumps or channel knockouts

  • Unique ACO Drainlock grating fixing improves hydraulic capacity

  • Lightweight design is simple and fast to install

  • 100% recyclable

Recommended applications

  • Threshold drainage

  • Public landscaping

  • Car parking areas

  • HGV parking

  • Petrol station forecourts

  • Light industrial

  • SuDs
