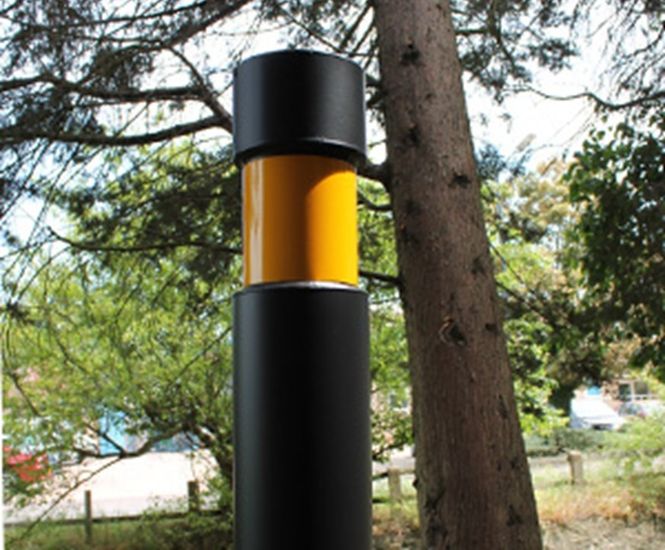

AUTOPA's stepped mild steel bollards are galvanised to ensure longevity. The step offers a decorative feature with the option of adding reflective tape for added visibility.

Features

  • Galvanised finish as standard

  • Step height 150mm max; will fit tape to 130mm

  • 1400mm overall length as standard

  • Ragged ends for root fixing as standard

Specifications

  • 1000mm above ground

  • 400mm below ground

  • 3mm wall thickness - 114mm

  • 5mm wall thickness -139mm, 152mm, and 168mm

Installation

Fixed versions should be cast into concrete to a minimum depth of 400mm, depending on ground conditions.

Stepping options

  • 114mm stepping to 101mm

  • 139mm stepping to 114mm

  • 152mm stepping to 139mm

  • 168mm stepping to 139mm

Other options

  • Flanges for bolting down and removable versions with ground sockets for use with a padlock are also offered

  • Re-inforced option available (ragged only)

  • Colour coated options available on request

  • Other sizes available on request
