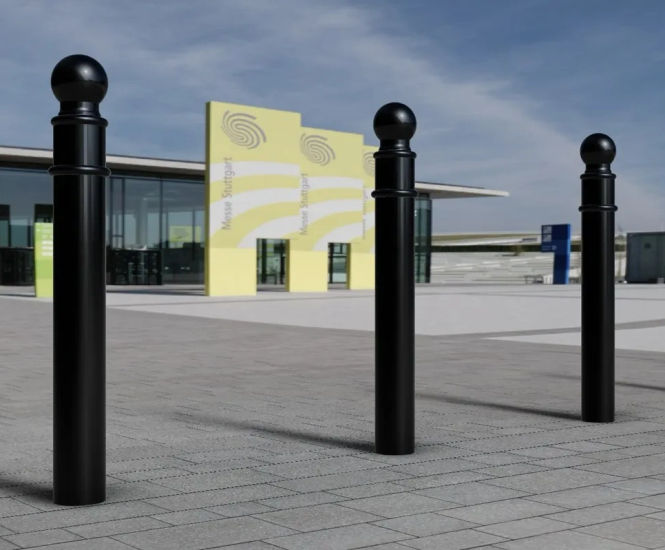

The GFC5000 ornamental bollard is suitable for a wide range of locations and purposes. Constructed using mild steel and galvanised to ensure longevity. Cap and ring are welded onto the steel tube to complete the design. Supplied concrete-in as standard, bolt-down and removable versions are also available. The bollards are available in a galvanised and galvanised and coated finish (RAL numbers must be specified at time of order). Eyelets, hooks and chains can be added to complete the decorative effect.

Key features

  • Main construction of galvanised mild steel tube

  • Cap and rings welded on to steel tube

  • Ground fixing of ragged bollards is assisted by ground fixing spikes

Specifications

  • 1000mm above ground

  • 300mm below ground (concrete-in)

  • 300mm below ground (removable)

  • 114mm-diameter tube

  • 3mm wall thickness

Additional information

  • Also available bolt-down (bolts available extra)

  • Removable versions also available (lockable by padlock)

  • Galvanised as standard, colour-coated options available extra

  • For colour-coated finishes, RAL numbers must be specified at time of order

  • Options of eyelets, hooks and chain are available extra

Product range

Fixed

Code 138 120 081: ragged (galvanised) - 15kg
Code 138 120 082: ragged (galvanised and black) - 15kg
Code 138 120 083: ragged (galvanised and colour) - 15kg
Code 138 120 084: flanged (galvanised) - 15kg
Code 138 120 085: flanged (galvanised and black) - 15kg
Code 138 120 086: flanged (galvanised and coated) - 15kg

Removable

Code 138 120 087: removable (galvanised) - lift weight - 15kg, overall weight - 23kg
Code 138 120 089: removable (galvanised and black) - lift weight - 15kg, overall weight - 23kg
Code 138 120 088: removable (galvanised and colour) - lift weight - 15kg, overall weight - 23kg
