Material Cast iron
Steel
Features Fixed / static
Removable / lift out
Fixing Root fixed
Surface / baseplate fixed
Aboveground height (mm) 1000
Belowground height (mm) 400
Diameter / width (mm) 114
Weight (kg) Ragged - 15.4; flanged - 11.7; removable - 19.7

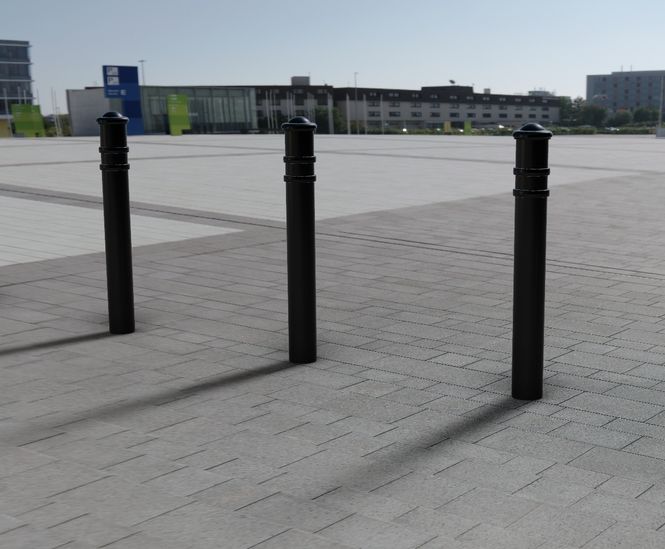

The GFC1700 ornamental bollard is manufactured from galvanised mild steel with two malleable cast iron rings for decoration and provides a functional barrier to unauthorised vehicle access.

Suitability: pedestrian precincts, pavements, and play and parking areas, as part of traffic calming measures, pedestrianisation schemes and as a deterrent to ram-raiders.

  • Mild steel tube
  • Galvanised and galvanised and coated finish (RAL numbers to be specified when ordering)
  • Ornamental, slightly domed cap and rings made from impact-resistant, malleable cast iron
  • Standard ground fixing assisted by spikes

Specifications

  • 1000mm above ground
  • 400mm below ground
  • 114mm diameter tube
  • 3mm wall thickness

Product range

Fixed

Code 138 120 251: ragged (galvanised) - 15.4kg
Code 138 120 252: ragged (galvanised and black) - 15.4kg
Code 138 120 253: ragged (galvanised and colour) - 15.4kg
Code 138 120 254: flanged (galvanised) - 11.7kg
Code 138 120 255: flanged (galvanised and black) - 11.7kg
Code 138 120 256: flanged (galvanised and colour) - 11.7kg

Removable

Code 138 120 257: removable (galvanised) - lift out weight 15.0kg; weight 19.7kg
Code 138 120 259: removable (galvanised and black) - lift out weight 15.0kg; weight 19.7kg
Code 138 120 258: removable (galvanised and colour)- lift out weight 15.0kg; weight 19.7kg

Options

  • Ragged version can be reinforced with internal steel core, concrete or both
  • Removable version (lockable by padlock)
  • Available with flanges for bolting down (bolts available at extra cost)
  • Colour coated finishes: painted, powder coated or plastic coated
  • Eyelets, hooks and chains can be added for decorative effect


The GFC1700 ornamental bollard is manufactured from galvanised mild steel with two malleable cast iron rings for decoration and provides a functional barrier to unauthorised vehicle access.

Suitability: pedestrian precincts, pavements, and play and parking areas, as part of traffic calming measures, pedestrianisation schemes and as a deterrent to ram-raiders.

  • Mild steel tube
  • Galvanised and galvanised and coated finish (RAL numbers to be specified when ordering)
  • Ornamental, slightly domed cap and rings made from impact-resistant, malleable cast iron
  • Standard ground fixing assisted by spikes

Specifications

  • 1000mm above ground
  • 400mm below ground
  • 114mm diameter tube
  • 3mm wall thickness

Product range

Fixed

Code 138 120 251: ragged (galvanised) - 15.4kg
Code 138 120 252: ragged (galvanised and black) - 15.4kg
Code 138 120 253: ragged (galvanised and colour) - 15.4kg
Code 138 120 254: flanged (galvanised) - 11.7kg
Code 138 120 255: flanged (galvanised and black) - 11.7kg
Code 138 120 256: flanged (galvanised and colour) - 11.7kg

Removable

Code 138 120 257: removable (galvanised) - lift out weight 15.0kg; weight 19.7kg
Code 138 120 259: removable (galvanised and black) - lift out weight 15.0kg; weight 19.7kg
Code 138 120 258: removable (galvanised and colour)- lift out weight 15.0kg; weight 19.7kg

Options

  • Ragged version can be reinforced with internal steel core, concrete or both
  • Removable version (lockable by padlock)
  • Available with flanges for bolting down (bolts available at extra cost)
  • Colour coated finishes: painted, powder coated or plastic coated
  • Eyelets, hooks and chains can be added for decorative effect
