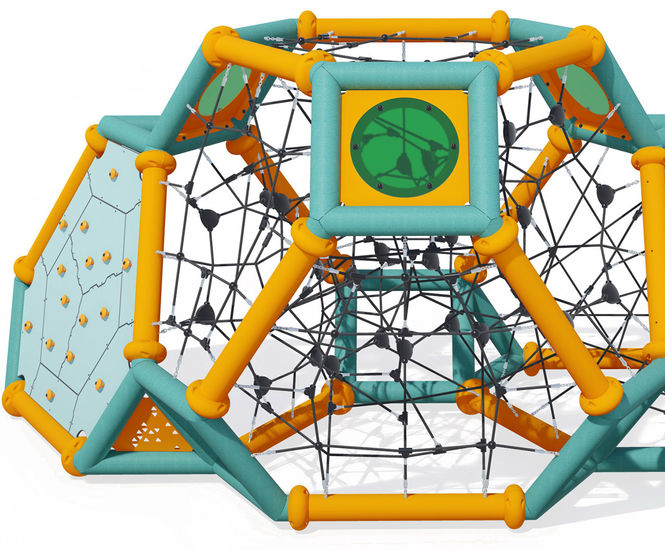

Kairn J6102® is a large outdoor climbing and play structure for users aged 6+. Measuring 6.05m x 3.90m x 3.05m, it supports motor, social, and sensory development through climbing, crawling, rope tunnels, and tactile and visual play elements. Built from galvanised steel, HPL panels, and polyester-covered ropes for lasting outdoor performance.

  • Large multi-user climbing and play structure with rope tunnel, suitable for children aged 6+

  • Accommodates up to 50 users simultaneously, ideal for busy playgrounds and public spaces

  • 29 play functions supporting physical, social, and sensory development

  • Fully inclusive design with physical, sensory, and cognitive stimulation elements

  • Constructed from weather and vandal-resistant materials including galvanised steel and HPL panels

  • Features climbing holds, rope tunnels, crawl spaces, portholes, and tactile and visual play panels

  • Independently laboratory certified to European play equipment standards (EN 1176)

Applications

School playgrounds

Public parks

Leisure parks

Holiday parks

Community play areas

Dimensions

Length 6.05m

Width 3.90m

Height 3.05m

Free fall height 3.00m

Materials

  • 168.3mm diameter painted galvanised steel posts

  • Regenerated PA6 polyamide fixing collars

  • 13mm thick HPL coloured panels - weather and vandal resistant

  • 3mm thick painted aluminium closing elements

  • 16mm diameter galvanised steel cable ropes with polyester cover

  • Polyamide net fittings with two-part design for easy strand maintenance

  • Stainless steel chains

  • 8mm thick methacrylate (PMMA) portholes

  • Play panel comprising polycarbonate mirror, ribbed aluminium sheet, and grained polyethylene panel

  • Anodised aluminium tubes - rust-proof and climate resistant

  • Polypropylene climbing holds - non-toxic, UV resistant, and shock resistant

  • Stainless or plated steel fixings with anti-vandalism polyamide caps

Installation

Requires 2 installers

Accreditations

Independently certified by TÜV laboratory to European play equipment standard EN 1176
