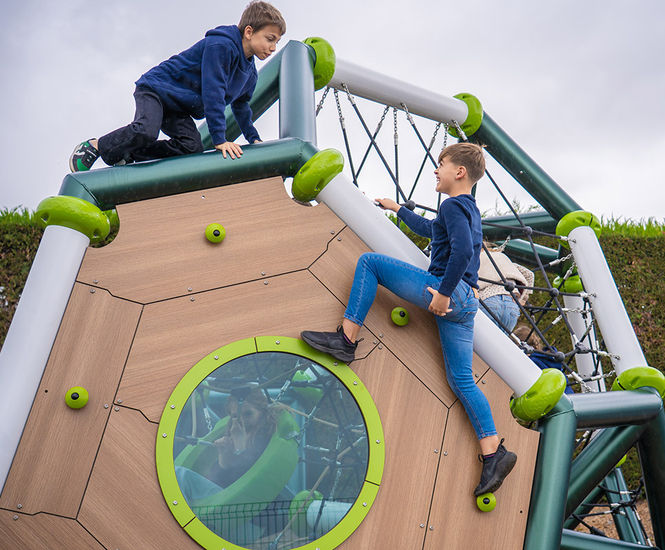

Kairn J6101-C® is a modular climbing play structure for children aged 6 and above Designed for outdoor playgrounds, it measures 5.24m long, 2.66m wide, and 3.25m high, with a free fall height of 2.50m. Made from galvanised steel, HPL panels, polyamide, stainless steel, and polypropylene climbing holds.

  • Large climbing structure for kids playgrounds

  • Supports up to 35 users at once

  • Encourages motor, social, and cognitive development

  • Accessible from age 6+

  • Certified by TÜV independent laboratory

  • Weather and vandal resistant materials

Applications

  • Public playgrounds and parks

  • School playgrounds

  • Leisure parks and holiday campsites

  • Community recreation areas

  • Shopping centre play zones

Dimensions

Length 5.24m

Width 2.66m

Height 3.25m

Free fall height 2.50m

Materials

Painted galvanised steel posts 168.3mm diameter

Regenerated PA6 polyamide fixing collars

13mm thick HPL coloured panels

Galvanised steel cable ropes with polyester cover, 16mm diameter

Stainless steel chains

Polyethylene rubber ring, 70cm outside diameter, 45cm inside diameter

8mm thick methacrylate (PMMA) porthole

Polypropylene climbing holds

Stainless or plated steel fixings with anti-vandal polyamide caps

Installation

Requires 2 installers

Product accreditations

Certified by an independent laboratory for play and sports equipment
