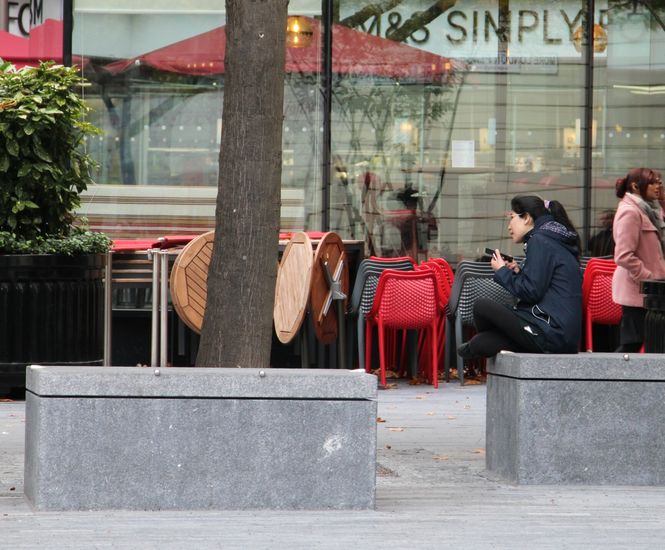

Townscape Counter Terror Blocks and Seating are designed for Hostile Vehicle Mitigation. They prevent vehicle incursion into pedestrian areas while visually complementing the buildings and areas they protect.

 Appealing and practical seating options can be attached to Counter Terror Blocks to create a areas for outdoor relaxation. Seating, made from durable timber, is available in various hardwoods.

PAS 68 rated system, the Counter Terror Block is engineered to halt and immobilise a 7.5-tonne vehicle moving at speeds from 30mph to 40mph.

Installation

100mm recess into tarmac, concrete, or paved surfaces.

Materials

Precast concrete

Tropical hardwood timber

Specification

Description

Size

SKU

Speed and Weight Rating*

Available Finishes

Shape

Foundation Depth

Height Above Ground

CT BLOCK 150

1490x990x600mm

VED/0044

30 MPH 7500kg & 40 MPH 7500kg

Premier Smooth or Exposed

Rectangle with 15mm Chamfer to edges

100mm

500mm

CT BLOCK 125

1250x1250x600mm

VED/0045125

30 MPH 7500kg & 40 MPH 7500kg

Premier Smooth or Exposed

Square with 15mm Chamfer to edges

100mm

500mm

CT BLOCK 150 APEX

1490x900x800mm

VED/0007

30 MPH 7500kg & 40 MPH 7500kg

Premier Smooth or Exposed

Apex with 20mm Rounded edges

100mm

500mm

CT BLOCK 200 OFFSET

1990x990x600mm

VED/0047

30 MPH 7500kg & 40 MPH 7500kg

Premier Smooth or Exposed

Rectangle with 15mm Chamfer to edges and offset ends

100mm

500mm

CT BLOCK 200 STADIUM

1990x990x600mm

VED/0046

30 MPH 7500kg & 40 MPH 7500kg

Premier Smooth or Exposed

Rectangle with 15mm Chamfer to edges and rounded ends

100mm

500mm

CT BLOCK 225

2250x900x600mm

VED/0044225

30 MPH 7500kg & 40 MPH 7500kg

Premier Smooth or Exposed

Rectangle with 15mm Chamfer to edges

100mm

500mm

CT BLOCK 320

3200x990x600mm

VED/0044320

30 MPH 7500kg & 40 MPH 7500kg

Premier Smooth or Exposed

Rectangle with 15mm Chamfer to edges

100mm

500mm
