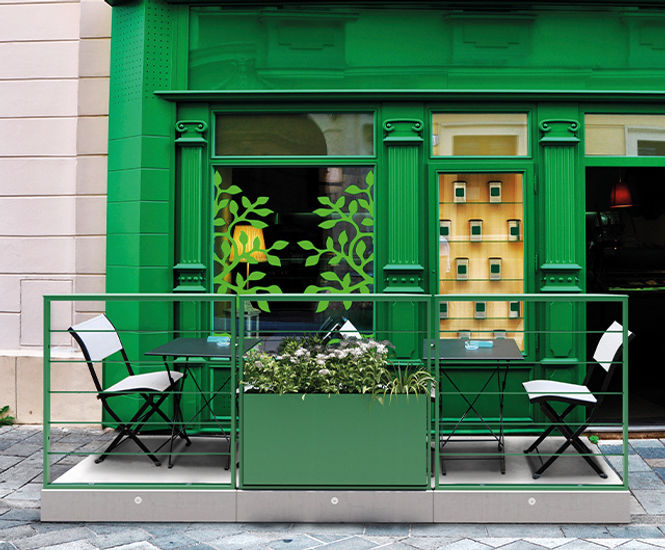

2X1 is a modular parklet system made from high-performance concrete with options for a rectangular tubular barrier, round steel rails, and integrated planters. Designed for installation on pavements with height differences, it includes adjustable aluminium extrusions and a trapezoid HPL top. All metal parts are galvanised and powder coated, with stainless steel fixings.

  • Modular parklet system for urban outdoor spaces

  • High performance concrete platform with adjustable feet

  • Barrier options: five round steel rails or two rails with planter

  • Trapezoid HPL top fixed to barrier

  • Compensates for pavement height differences from 100 mm to 245 mm

  • Galvanised and powder coated metal parts for durability

  • Stainless steel fixings for corrosion resistance

Applications

  • Urban streetscapes

  • Pavement extensions

  • Temporary public seating

  • Outdoor social spaces

  • Community parklets

Dimensions

L: 2000mm

W: 1000mm

H: 170mm

Materials

High performance concrete platform

Galvanised steel barrier and rails

Aluminium extrusions

HPL (high pressure laminate) top

AISI304 stainless steel fixings

Finish

Galvanised and thermosetting polyester powder coated metal parts

Options and variations

Barrier with five round steel rails

Barrier with two round steel rails and rectangular planter

With or without barrier

Installation

Self-supporting platform with feet adjustable from above using hexagonal insert sleeve

Interlocking aluminium extrusions compensate for pavement height differences (100-245mm)
