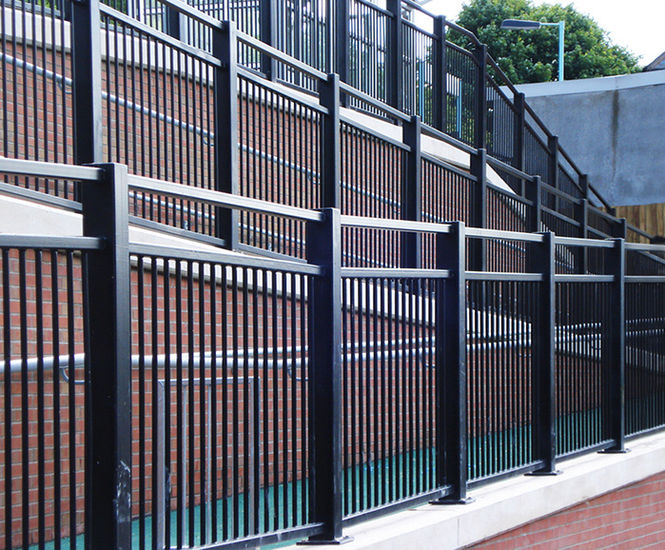

Pedestrian Parapet Guardrail is made from steel and designed to prevent falls in areas with height risks, such as ramps, bridges, and stairways. Manufactured to BS 7818: Class 3C, this system is available in heights for pedestrians, cyclists, and equestrian use, with options for integrated handrails and sight gaps. Hot dip galvanised to BS EN ISO 1461:2009, with polyester powder coating available.

  • Steel guardrail system for pedestrian, cyclist, and equestrian safety on elevated walkways
  • Manufactured to BS 7818: Class 3C for compliance with UK authority specifications
  • Standard heights: 1150mm (pedestrian), 1400mm (cyclist), 1800mm (equestrian)
  • Panels can include integrated handrails and sight gaps
  • Hot dip galvanised finish to BS EN ISO 1461:2009 for corrosion protection
  • Supplied with baseplates or can be root fixed
  • Custom lengths available to suit project requirements

Applications

  • Ramps
  • Bridges
  • Stairways
  • Areas with risk of falling from height
  • Public walkways
  • Cycle paths
  • Equestrian routes

Dimensions

Height: 1150mm (pedestrian)

Height: 1400mm (cyclist)

Height: 1800mm (equestrian)

Materials

Steel

Finish

Hot dip galvanised to BS EN ISO 1461:2009

Polyester powder coated (optional)

Options and variations

Panels with or without sight gap

Integrated handrails available

Custom lengths

Installation

Supplied with baseplates or can be root fixed

Accreditations

Manufactured to BS 7818: Class 3C

Complies with all UK authority specifications

Galvanised to BS EN ISO 1461:2009
