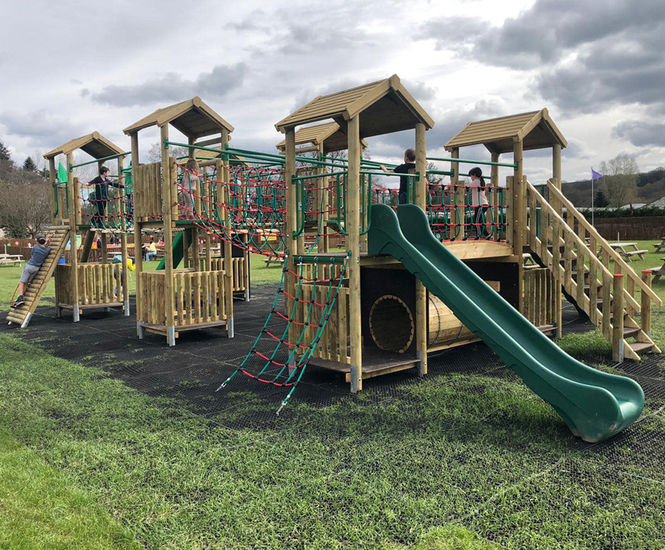

The 6 Tower K-76 12m-long multiplay unit is packed with features to inspire hours of imaginative, agile and active play.

Six roofed towers of varying heights are interlinked by a selection of bridges, tunnels, access and exit points. It accommodates children of mixed abilities, by carefully considering the location of the access and exit points, allowing them to climb on and off at least some of the towers with ease.

Caledonia Play offers a flexible approach to allowing clients to choose their own configurations of tower units, bridges, access and exit points and can help decide the most suitable tower for the play area.

Specifications

  • Quarter-sawn machine-rounded pressure-treated poles with a sanded finish

  • Hot dipped galvanised metal extension legs

  • Stainless steel fixtures and fittings

  • Galvanised electro powder-coated painted metalwork

  • High-density polyethylene slide

  • Dimensions: 12.5 (l) x 6.5 (w) x 3.4m (h)

  • Safety area: 16 x 10m

  • Max fall height: 1.47m

  • Age group: 5-14

  • Safety surfacing area: 58m²

Materials

Tower

Large timber poles combined with stainless steel fixings and quality steel-cored nylon ropes. The ends of the legs are fitted with hot-dipped galvanised metal feet to keep away from ground moisture.

Timbers are pressure-treated with non-arsenic-based preservative salts, then impregnated with wax.

Slides

Strong green UV-protected high-density polyethylene that is easy to clean and will not fade easily in the sun.

Safety surfacing

The company's grass safety mats can be used to prevent ground erosion and provide an impact-absorbing surface with a 2.5m critical fall height (CFH).

Alternatively safety surfacing is wet pour, a bonded rubber surface, for placing on existing tarmac or concrete surfaces. It has excellent impact absorption and anti-slip properties and is available in a variety of thicknesses.
