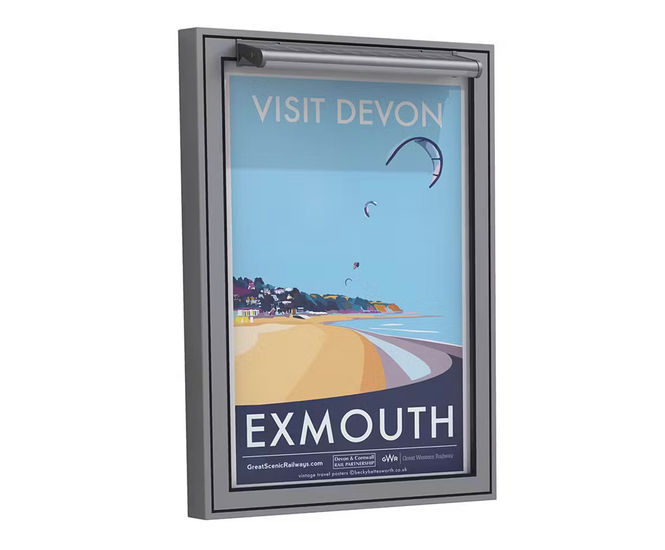

The Solar Case is an illuminated led display case. Built as an exterior cabinet it provides a stylish, practical and efficient way to display information throughout the day and night in this high grade display cabinet. Essentially it is an outdoor notice board in a robust case that will last for years.

The Solar Case has four options and comes in two coating options. You also have the option to buy it with or without posts depending on whether it can be wall mounted. It has a wide variety of applications and is particularly useful in rural locations where conventional street lighting and mains electric supply does not exist or would be prohibitively expensive to install.

Solarcase key features

  • Aluminium construction

  • 4 standard sizes – custom sizes on request

  • Side hinged with toughened glass covers

  • Weatherproof IP65

  • Includes snap frame to hold poster

  • RAL powder coated or silver anodised

  • Wall or post mounted options

Technical specification

  • Standard sizes – A2 portrait / A1 portrait / A0 landscape and Quad (accepts poster 1016mm high x 762mm wide).

  • Materials – Aluminium frame with side hinged door and toughened glass covers.

  • Fixing Posters – The cases all come with an internal frame to hold the posters.

  • Fixing applications – The cases can be wall mounted or post mounted.

  • Case illumination – Using our solar boom light unit fixed to the top of the case.

  • lumens level – 100 lumens per watt – our popular 600mm wide solar boom will generate 1000 lumens.

  • Sensor – The light operates on a low level light 25% brightness and then 100% brightness on approach.

  • Warranty – 3 years

Lighting solar boom

  • 3 standard sizes 300mm/600mm/1200mm

  • Dark grey anodised

  • Zero energy costs

  • Co2 neutral

  • 5 yr battery life

  • DC charging option

  • Simple installation – (no hard wiring)

  • Sensor system – 25% brightness and 100% brightness on approach

  • Remote control activation 4/6/8 hrs then off

  • Operating temp -25C to +65C

  • Weatherproof IP65

Lighting Specifications

  • LED illumination

  • Light colour 6000k

  • Pv panel wattage

  • 300mm 5w

  • 600mm 10w

  • 1200mm 20w

  • Beam angle 20 degrees

  • Lumens

  • 300mm 500lm

  • 600mm 1000lm

  • 1200mm 2000lm

  • Lion battery 3.7v all sizes

Case dimensions

  • DR Poster (Portrait) - Visual size: 635mm x 1016mm | Overall size: 765mm x 1146mm | Boom – 600mm

  • A2 Poster (Portrait) - Visual size: 420mm x 594mm | Overall size: 550mm x 724mm | Boom – 300mm

  • A1 poster (Portrait) - Visual size: 594mm x 841mm | Overall size: 724mm x 971mm | Boom – 600mm

  • A0 poster (Landscape) - Visual size: 841mm x 1189mm | Overall size: 971mm x 1319mm | Boom – 1200mm
