Junior Basket Swing (CP-JBS)
The Junior basket swing for commercial use has been specifically designed for smaller children to enjoy, with the basket set lower to the ground allowing them to climb on and off without any assistance. The 1m-diameter basket is suspended on stainless steel chains supported by universal swing points fitted into angled support timbers. The frame is
Click for full image

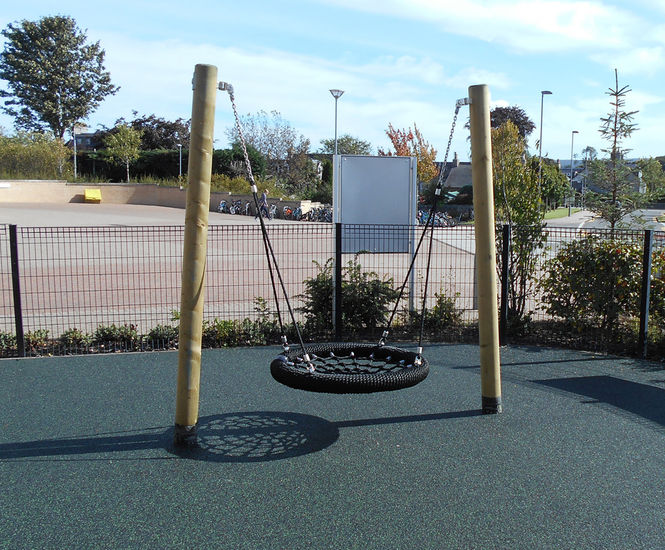

Junior basket swing with timber frame for commercial application
The Junior basket swing for commercial use has been specifically designed for smaller children to enjoy, with the basket set lower to the ground allowing them to climb on and off without any assistance.
The 1m-diameter basket is suspended on stainless steel chains supported by universal swing points fitted into angled support timbers.
The frame is constructed of two large quarter-sawn timbers set into the ground with concrete to ensure they are secure.
The simple design also looks good in woodland and rural settings.
Components
Pressure-treated wax-impregnated timber frame
1x galvanised steel ring and Herculean net rope basket
Dimensions
Length: 2.0m
Width: 1.0m
Height: 2.2m
Basket: 1m diameter
Installation
The basket must not be less than 40cm from the ground when installed. This is measured from the outside ring of the basket to the ground.
