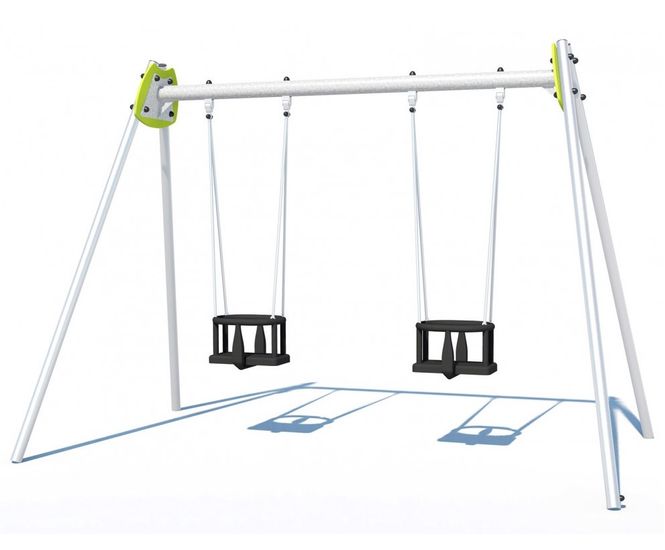

J474 is a playground swing with 2 cradle seats designed to accommodate up to 2 users aged from 1 to 3 years.

The size of the module is: 3.20 m wide, 1.70 m. deep, 2.20 m. high.

The free fall height (FFH) is 1.20 m.

Specifications

Age range:

1 - 3

Number of users:

2 users

FFH :

1.20 m

Size:

3.20 x 1.70 x 2.20 m

Materials

  • Support legs and horizontal beam: galvanised steel

  • Swing bearings: stainless steel

  • Coloured panels: 13mm HPL

  • Cradle seat: polyurethane

  • Cradle chain: stainless steel

  • Fixings: stainless steel or plated steel with ant--vandal polyamide caps

Equipment installation

Number of installers:

2

Installation time:

01:30:00

Concrete volume:

0.11 m3

Surface:

18.00 m2

Total weight:

102.93 kg

Weight of the heaviest element:

30.91 kg
