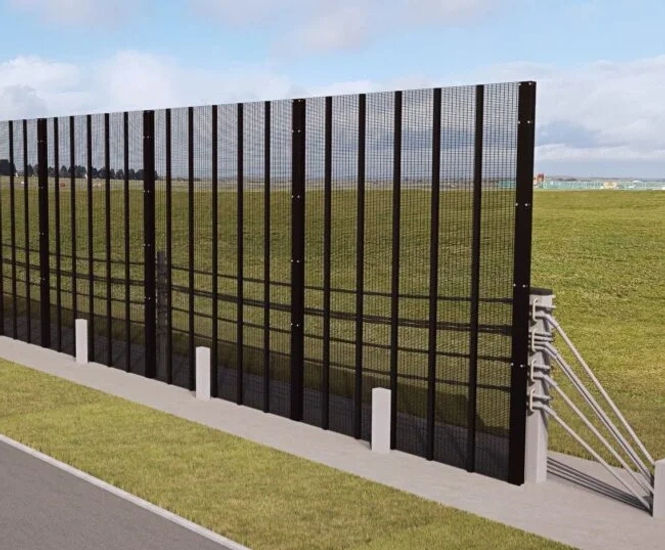

Rampart 30 is a high security fence system combined with shallow foundation hostile vehicle mitigation (HVM).

Rampart 30 has been rated to PAS 68:2010 which means it can stop a 7.5 tonne vehicle moving at 30 miles per hour (48 kilometres per hour).

The system can be used with any of CLD’s Securus S1, S2, S3 or S4 fence panels depending on threat level.

Key Features

  • Full multi-threat fencing and integrated HVM system

  • Ideal for high security sites

  • Shallow single location foundation gives a small footprint

  • Only 400mm foundation required

Dimensions

Post Height
HVM: 1080mm from finished floor level

Main Post Width
200mm

Post Depth
400mm with 50mm concrete blinding

Sling Length
Rope Slings: 7500mm standard, bespoke available
Anchor Slings: 1000mm standard

Rope Diameter
22mm galvanised or 22.15mm coated

Finish

Rope Finish
Options:

  • Galvanised coating

  • Black high-density polyethylene (HDPE) coating

Fence Finish
Options:

  • Polyester powder-coated to 60-80 microns

  • 160-200 microns with marine grade and metallics

  • Any RAL colour available

Specification

  • Fence Type: Shallow foundation hostile vehicle mitigation system for use with CLD Securus S1, S2, S3 or S4 panels

  • Tolerance: +/- 10mm

  • Concrete Specification: C40/50 with 10mm grit

  • Rope quantity: 3

  • End foundations: 2000 long x 2000mm wide x 400mm deep

  • Intermediate foundations: 1000mm long x 1200mm wide x 400mm deep

  • Line Support foundations: 300 x 300 x 400mm

  • Minimum of 15 years against manufacturing defects
