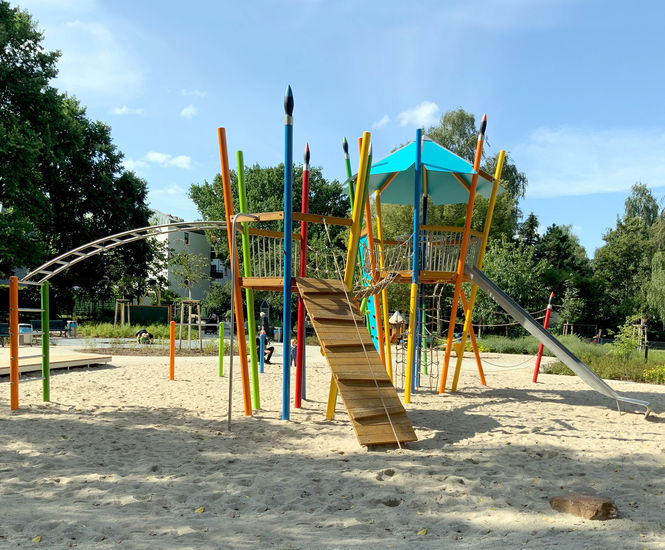

Stockholm multiplay unit consists of:

  • 1 octagon tower with 8 radial inclined posts made of stainless steel, segmentally lacquered in Mikado-design

  • 1 support post, segmentally lacquered in Mikado-design

  • 1 octagon platform with opening, height of the platform, PH 250cm

  • 1 spire roof made of HPL (optional standard color assortment) with a stainless steel cap

  • 1 net tunnel made of Hercules rope

  • 1 round railing element made of stainless steel

  • 1 climbing wall with a step through frame and climbing grips made of synthetic resin

  • 1 ladder element of wall bars

  • 1 handle made of stainless steel

  • 1 Spiel-Bau slide, box-shaped, made of stainless steel, PH 250cm

  • 1 net bridge made of Hercules rope, length approx. 300cm, with a double-sided handrail

  • 1 triangular stage, approx. 90x90x90cm, PH 120cm, posts made of stainless steel, segmentally lacquered in Mikado-design

  • 1 dangle arch made of stainless steel, length approx. 300cm, posts made of stainless steel, segmentally lacquered in Mikado-design

  • 1 slope-rope made of Hercules rope, length approx. 300cm, on a inclined posts made of stainless steel, segmentally lacquered in Mikado-design

  • 1 running-rope made of Hercules rope, length approx. 300cm

  • 1 net ladder made of Hercules rope

  • 1 climbing rope made of Hercules rope

  • several balustrades and railings

All support posts made of stainless steel tube ø101,6mm, segmental lacquered in design of Mikado.
All wooden parts made of Robinia, planed and chamfered. All wooden parts are untreated.

Visible ends of the posts are welded conclusively to a stainless steel cap.
All stainless steel surfaces are radiated with glass marbles according to environmental protection rules.
Connection between platform/railing and support posts through stainless steel press-in threaded sleeves.

Platform fixed by use of concentrical incorporated stainless steel brackets.
Connection point net/rope with support posts through specifically formed stainless steel fork and tensible stainless steel chain.
Nets made of Hercules rope.
All connecting parts made of stainless steel or galvanized. Use of self-locking nuts only.

Drying cracks are normal in all native hard woods, also after appropriate storage and professional treatment. Therefore drying cracks do not justify a warranty claim. (cf supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6)
