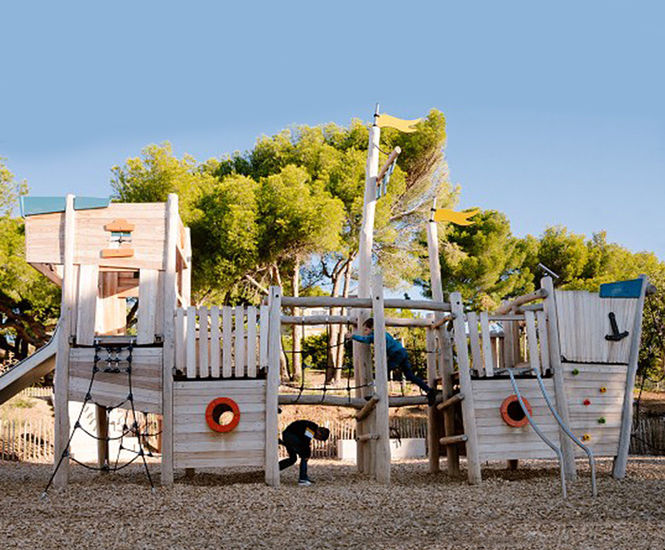

Galleon - Wooden boat playground equipment J49300® is a large play structure in the "Boats and seascapes" range, designed for children aged 3 and up, with capacity for up to 55 users. Made from natural robinia wood, Douglas fir, stainless steel, and polyester-coated steel cables, it includes 32 play functions such as climbing, sliding, balancing, and role play.

  • Large wooden playground boat for up to 55 children aged 3+
  • 32 play functions including climbing, sliding, balancing, and sensory activities
  • Made from rot-proof robinia wood, Douglas fir, stainless steel, and polyester-coated steel cables
  • TÜV certified for safety
  • Repairability score of 8.98/10
  • Standard lead times and complete documentation available

Applications

  • Public playgrounds
  • Parks and recreation areas
  • School play areas
  • Outdoor family attractions
  • Community spaces

Dimensions

Length 11.90 m

Width 3.90 m

Height 5.40 m

Free fall height 2.90 m

Surface area 86.00 m²

Total weight 3256.50 kg

Heaviest element 1495.92 kg

Maximum users 55

Materials

Posts made from sap-free robinia wood

Boards made from natural robinia wood or Douglas fir

Stainless steel tubes, 40 mm diameter

Polyester-coated galvanised steel cables, 16 mm diameter

Polyamide net fittings and spheres

Installation

Requires 4 installers

Installation time 28 hours

Concrete volume 0.65 m³

Accreditations

TÜV certification

Sustainability

Repairability score 8.98/10
