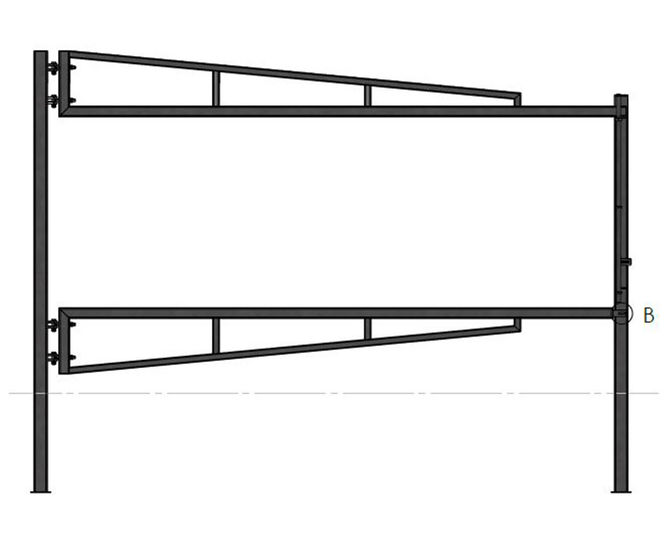

Height Restriction With Swing Barrier - steel access barrier for vehicles
Height Restriction with Swing Barrier – Custom to Suit Specification is a swing barrier system designed to control vehicle access by limiting entry height. Made from 200x200mm, 100x100mm, and 80x80mm square hollow section steel posts and frame. Height and width are customisable to site requirements. Includes standard hinge and lock system: swing
Click for full image
Height Restriction With Swing Barrier - steel access barrier for vehicles
Height Restriction with Swing Barrier – Custom to Suit Specification is a swing barrier system designed to control vehicle access by limiting entry height. Made from 200x200mm, 100x100mm, and 80x80mm square hollow section steel posts and frame. Height and width are customisable to site requirements. Includes standard hinge and lock system.
Swing barrier system for height restriction and access control
Custom height and width to match site drawings
Made from square hollow section steel for posts and frame
Standard hinge and lock system included
Drawings supplied for approval before manufacture
Applications
Vehicle access restriction at car parks, site entrances, or controlled zones
Dimensions
Hinge posts: 200x200mm
Latch post: 100x100mm
Frame: 80x80mm
