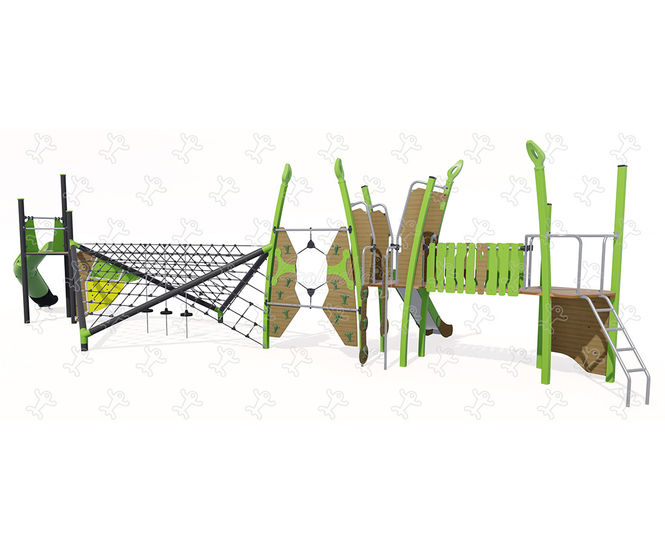

Proludic J57012® is a large metal climbing playground structure with climbing walls, nets, and slides, designed for children aged 3 and up, supporting up to 48 users. Key features include multiple climbing and sliding elements, a range of play functions, and a modular design for group play.

  • Large multi-user climbing and sliding play equipment for children aged 3+
  • Accommodates up to 48 users at once
  • Includes climbing walls, nets, slides, and balancing elements
  • 21 distinct play functions supporting motor skills, social interaction, and rest
  • Made from painted galvanised steel, HPL panels, stainless steel, and polyamide components
  • Non-slip platforms and weather-resistant materials
  • Certified by an independent laboratory for safety

Applications

  • School playgrounds
  • Parks and public play areas
  • Holiday leisure parks and campsites
  • Community recreation spaces
  • Shopping centre play zones
  • Residential developments

Dimensions

Length 15.73 m

Width 5.47 m

Height 3.81 m

Free fall height 2.35 m

Surface area 101.50 m²

Total weight 1084.63 kg

Heaviest element 37.64 kg

Maximum users 48

Materials

Painted galvanised steel posts and junctions

13 mm thick HPL coloured panels

12.5 mm thick HPL non-slip platforms

40 mm diameter stainless steel tubes

Polyamide caps and fixings

16 mm diameter galvanised steel cable ropes with polyester cover

Stainless steel and plated steel fixings

Polypropylene climbing holds

Rotomoulded and injection moulded polyethylene components

Non-slip rubber overmould steps

2 mm thick stainless steel sliding surface

Finish

Two-tone grey grained finish with undulating surface for scratch resistance

Installation

Requires 3 installers

Estimated installation time 28 hours

Concrete volume 1.00 m³

Accreditations

Certified by an independent laboratory

Performance

Weather and vandal resistant materials

Non-toxic, flameproof, and UV resistant components

Sustainability

Repairability score 9.51/10
