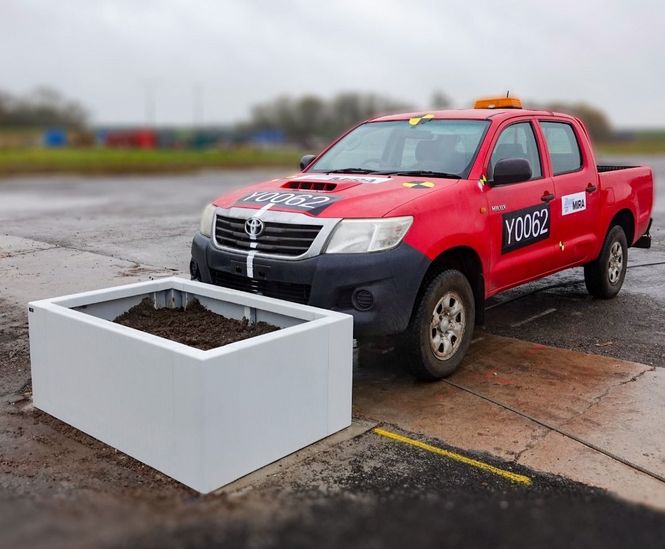

Inspira Protect is a modular, impact-tested planter system made from galvanised and powder-coated steel, designed to withstand vehicle impact in public spaces. Available in multiple sizes, it is tested to IWA 14-1 standards for both 1.5 and 2.5 tonne vehicles and can be scaled to suit site requirements.

  • Impact-tested planter system for vehicle mitigation

  • Made from fully-welded, hot-dip galvanised and powder-coated steel

  • Tested to IWA 14-1:2013 for 1.5 and 2.5 tonne vehicles

  • Modular design allows for scalable installation

  • Above-ground heights of 450 or 600mm

  • Suitable for custom site specifications

Applications

  • Public realm protection

  • Urban landscaping

  • Pedestrian zones

  • Transport hubs

  • Retail and commercial frontages

  • Event spaces

Dimensions

Above ground height: 450 / 600mm

Length: 1500mm

Width: 1000mm

Performance

IWA 14-1:2013 test rating: 450mm-high - V/1500[M1]/48/90:0.0

IWA 14-1:2013 test rating: 600mm-high - V/2500[N1G]/48/90:0.0

Materials

Galvanised and powder-coated steel

Finish

Hot-dip galvanised to BS EN 1461:2009 and powder-coated to site specification

Installation

Sits on a 150mm slab foundation

Accreditations

Tested to IWA 14-1:2013

Galvanised to BS EN 1461:2009
