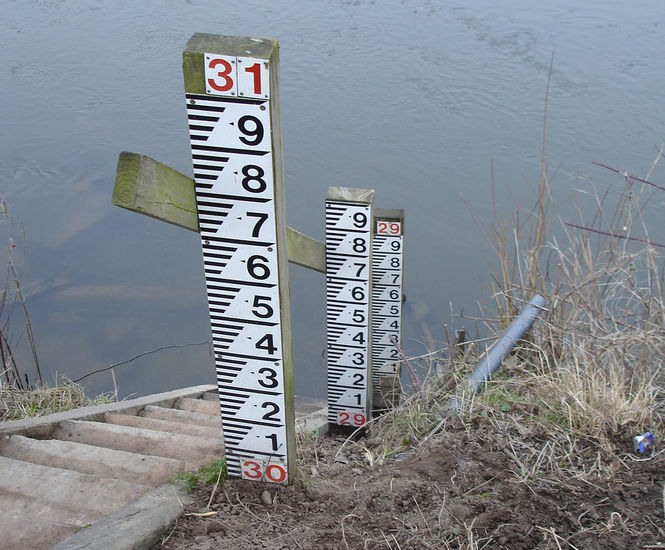

Shelley Signs Water Depth Gauge Boards are made from glass reinforced plastic for measuring water levels in rivers, canals, reservoirs, docks, and similar settings. Standard designs include D50 (145 mm wide, 1 m sections), D64 (100 mm wide, 1 m sections), D53 (tidal, 300 mm wide, 1 m sections), and Imperial (6 in wide, 3 ft sections). Custom options, photoluminescent, retroflective, and infra-red readable versions available.

  • Water level measurement boards for inland, tidal, and imperial applications

  • Made from glass reinforced plastic for durability and easy cleaning

  • Photoluminescent and retroflective finishes improve visibility in low light

  • Infra-red readable designs for camera monitoring

  • Custom sizes, colours, and incline options to suit site requirements

  • Complies with British Standard 3680: Part 7: 1971 for D50 and D64 designs

Applications

  • Rivers and streams

  • Canals and reservoirs

  • Lakes and lochs

  • Docks, harbours, and marinas

  • Bridges, tunnels, and structures for air draught measurement

  • Flood and ford depth indication

Dimensions

D50: 145 mm wide, 1 m sections

D64: 100 mm wide, 1 m sections

D53: 300 mm wide, 1 m sections

Imperial: 6 in wide, 3 ft sections

Materials

Standard gauge boards are produced as encapsulated Glass Reinforced Plastic prints. They are 4 mm thick, drilled, and are normally supplied with stainless steel screws. GRP is tried and tested. It gives a tough and robust product, and is suitable for long-term immersion in water.

Fixings

PVC backing boards are available in either 1.5 or 3.0 metre sections [as a stock item]. These are intended to be a support, not a post system. Timber or galvanised steel posts, together with suitable fixings, can be quoted on request.

Finish

Standard, photoluminescent, retroflective, infra-red readable

Options and variations

Custom colours, background, edging, widths, lengths, incline boards, air draught boards

Product accreditations

Complies with British Standard 3680: Part 7: 1971 (D50 and D64)
