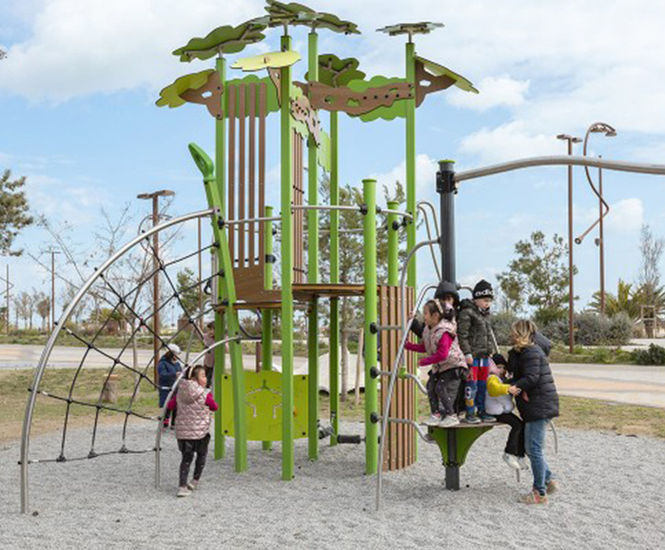

Ka'Yop Dynamic - Playground equipment J56002® is a large modular play structure for children aged 3 and up, designed for up to 29 users. It includes climbing activities, play panels, and a cableway, with 25 distinct play functions supporting physical, social, and sensory development. Made from painted galvanised steel, HPL panels, and recycled plastic fencing, it is suitable for outdoor use.

  • Large multi-activity playground structure for children aged 3+
  • Accommodates up to 29 users at once
  • Includes climbing, sliding, swinging, balancing, and sensory play features
  • Made from painted galvanised steel, HPL, and recycled plastic
  • Free fall height of 2.70 m for varied play experiences
  • Designed for durability and resistance to weather and vandalism
  • High repairability score of 9.43/10

Applications

  • Public playgrounds
  • School play areas
  • Parks and recreation spaces
  • Community centres
  • Outdoor family attractions

Dimensions

Length 11.78 m

Width 6.00 m

Height 5.20 m

Free fall height 2.70 m

Surface area 84.50 m²

Total weight 937.04 kg

Heaviest element 42.44 kg

Performance

Repairability score 9.43/10

Materials

Painted galvanised steel posts (95 x 95 mm and 125 mm diameter)

13 mm thick HPL coloured panels

12.5 mm thick HPL non-slip platform

Recycled plastic fencing from post-consumer waste

Injection moulded polyamide fixings and caps

Installation

Requires 2 installers

Installation time 21 hours

Concrete volume 1.70 m³

Accreditations

Certified by an independent laboratory

Sustainability

Fencing made from recycled food and drink containers
