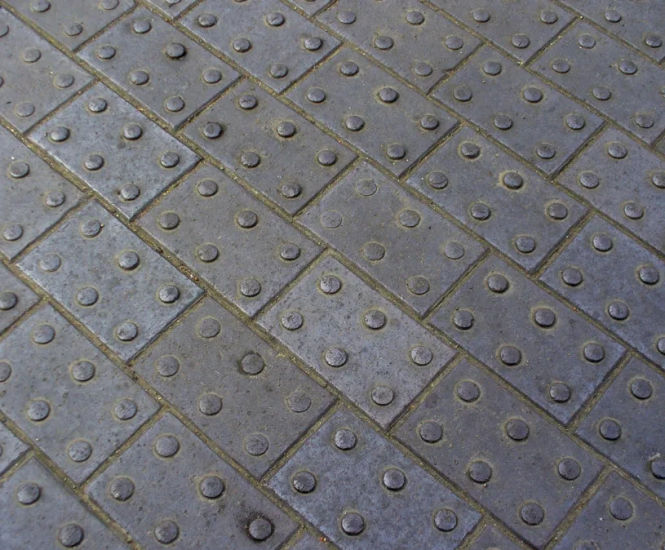

Ketley Group PT Tactile paver units are clay paving blocks designed to help visually impaired pedestrians detect crossings and hazards. Blister pattern pavers meet Department of Transport Disability Unit standards. Ribbed or corduroy pavers comply with Building Regulations Approved Document M. Directional pavers are non-standard units for guidance. Made from clay. Work size for most units is 200x133mm or 200x100mm, thickness 65mm.

  • Clay tactile paving blocks for pedestrian guidance and hazard warning
  • Blister pattern pavers for pedestrian crossings
  • Ribbed/corduroy pavers for hazard proximity such as steps or escalators
  • Directional pavers for route indication
  • Conform to Department of Transport and Building Regulations standards
  • Red and blue colour options
  • 36 units per m2 for 200x133mm size

Applications

  • Pedestrian crossings and footways requiring tactile guidance or hazard warning

Dimensions

PT.1.0 and PT.2.0: 200x133x65mm

PT.3.0 and PT.4.0: 200x100x65mm

PT.3.0 and PT.4.0: Rib height 6mm

PT.4.0: Additional dimensions 165mm, 35mm

Materials

Clay

Colours

Red

Blue

Options and variations

PT.1.0 Tactile blister special paver 200x133x65mm

PT.2.0 Tactile platform edge (blister) special paver 200x133x65mm

PT.3.0 Tactile ribbed/corduroy special paver 200x100x65mm, rib height 6mm

PT.4.0 Directional paver 200x100x65mm, rib height 6mm, 165mm, 35mm

Performance

Conforms to Department of Transport Disability Unit circular Jan 1991

Complies with Building Regulations Approved Document M
