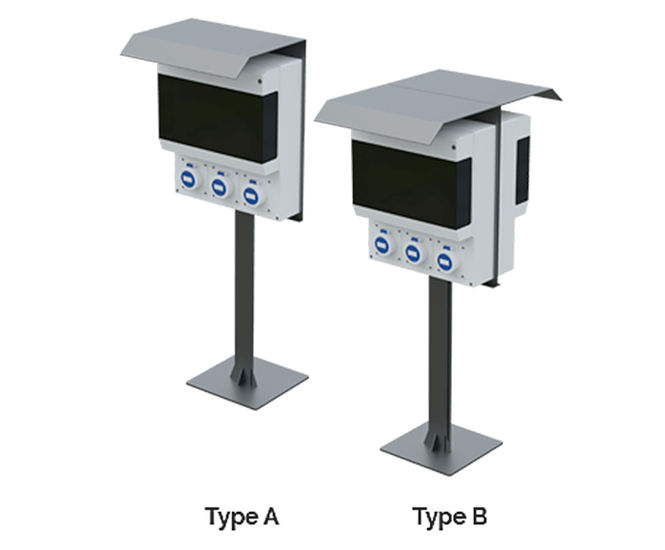

PUPS Cruiser power distribution unit
The PUPS Cruiser power distribution unit is ideal for marinas and camping sites. The tubular structure is made of 2mm stainless steel AISI 304, with the exterior finished in mirror polished stainless steel or powder-coated to the client's choice of RAL colour. Available in one-sided version (type A) or double-sided version (type B)
Click for full image
Power distribution units for marinas and camp sites
The PUPS Cruiser power distribution unit is ideal for marinas and camping sites.
The tubular structure is made of 2mm stainless steel AISI 304, with the exterior finished in mirror polished stainless steel or powder-coated to the client's choice of RAL colour.
Available in one-sided version (type A) or double-sided version (type B).
Technical data
Standard sizes:
340mm high x 300mm wide
Electrical specs:
VOLTAGE: 220-400V POWER: MAX 125A FREQUENCE: 50-60hz IP Protection Electrical Equipment: IP44 The Unit Casing has no IP rating REGULATIONS: EN 60947-1 EN 60439-1-2-3
Suggested socket configurations:
2/ 4/ 6/ 8 cee sockets 16/32a with protection max 125a Equipment available for configuration on demand.
Note
13amp socket outlets in water-tight IP66 enclosures can be added - these are not supplied with RCBO protection unless requested.
