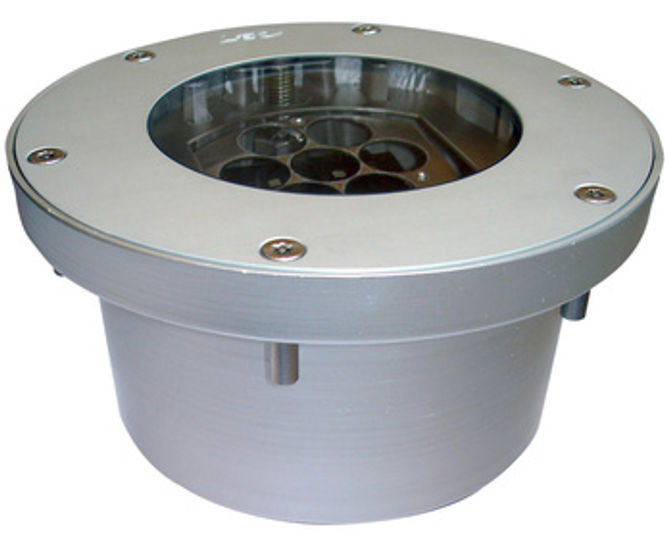

The spotlight inside the Allevard marker light swivels 360° in its recess to direct the beam in the right direction with no installation constraints.

LED plate is tiltable (+/25°) by external adjustment without opening the fitting or compromising its water resistant.

APPLICATIONS:

Low facade lighting (5m)

Highlight architectural features, street furniture, small trees…

Application: Outdoor Lighting

Standard flux : 1561 lm

Mounting type:

Ground flush recessed fittings
Ground recessed fittings
Weight: 2300 grams

Materials:

Anodised aluminium body
Vandal proof organic glass window
316L Stainless steel screws
Flush-recessed
2 possible recess dimensions
Withstands occasional traffic from all kinds of vehicles
RGBW options available
Options of luminous effects:

RGBW option
Adjustable on 2 axis
Rotating beam
Beam with various openings
Transparent flat window
Colour control system (optional)
Power supply – Control – 1m cable length

24V

Integrated

24V-Non dimmable , 24V-PWM , 24V-DMX

Remote

24V-0/10V , 24V-DALI

230V

Integrated

230V-Non dimmable , 230V-PWM , 230V-0/10V , 230V-DMX , 230V-DALI

Mechanical strength – Waterproofness

Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2
Withstands random all vehicles traffic
Resists impacts up to 60 joules (IK10)
IP68 tight for extended immersion
Case Studies

The Allevard light has been installed in prestigious public spaces in the UK and around the world, some which include, ‘the Walls of Marrakesh, Morocco’, ‘Statue of Autonomy, Madeira Island’, ‘St Catharine College, Cambridge University’, ‘Kamen-Nordenmauer in Germany’, ‘The WatchTower, “Tour du Guet”, Chagny’, ‘Walls of Rabat, Morocco’, ‘Lights on the open air museum of Paris La Défense’.
