Suitability Streets
Parks
Private gardens
Frame material Mild steel
Seat material Timber / wood
Fixings Surface / baseplate fixed
Seat length (mm) 2000
Seat depth (mm) 490
Seat height (mm) 290




Designer: Urban Design

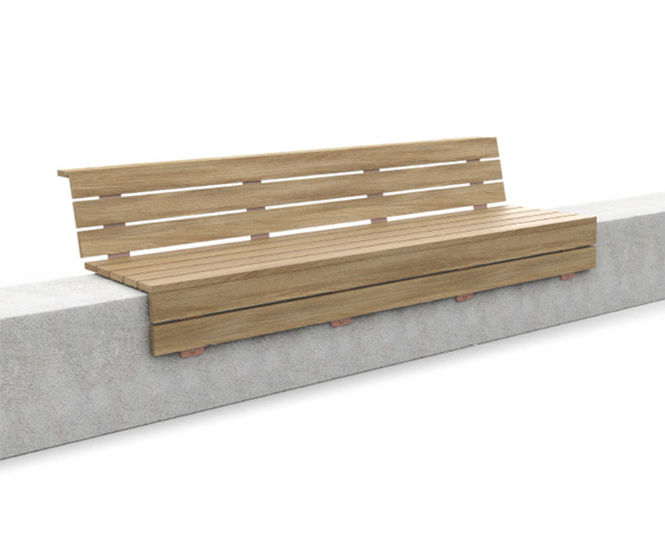

The bench Wall is made of 4 load-bearing elements made in steel sheet (60/10 thickness), on which slats in wood or WPC, with section 90x22mm and length 2000mm shaping the seat and the backrest, are fixed. On each one of these elements, an armrest in steel sheet can be added. The number of armrests can therefore vary, from 1 to 4 armrests. For the fixing to the low wall (already present), there are 8 countersunk holes, 8,4 mm diam. For the use of specific bolts (not provided).

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with AkzoNobel RAL colours at choice.

The wood used is either Iroko or Okume, treated with natural, water-repellent, UV ray resistant oils.

The WPC (Wood Plastic Composite) material is made of 70% recycled wood and 30% recycled plastic.

Optional: armrests

Weight of steel: 22 kg (with 2 armrests)
Weight of steel: 27 kg (with 4 armrests)

N.B.: The concrete base is not provided.

Material: steel, WPC


Designer: Urban Design
The bench Wall is made of 4 load-bearing elements made in steel sheet (60/10 thickness), on which slats in wood or WPC, with section 90x22mm and length 2000mm shaping the seat and the backrest, are fixed. On each one of these elements, an armrest in steel sheet can be added. The number of armrests can therefore vary, from 1 to 4 armrests. For the fixing to the low wall (already present), there are 8 countersunk holes, 8,4 mm diam. For the use of specific bolts (not provided).

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with AkzoNobel RAL colours at choice.

The wood used is either Iroko or Okume, treated with natural, water-repellent, UV ray resistant oils.

The WPC (Wood Plastic Composite) material is made of 70% recycled wood and 30% recycled plastic.

Optional: armrests

Weight of steel: 22 kg (with 2 armrests)
Weight of steel: 27 kg (with 4 armrests)

N.B.: The concrete base is not provided.

Material: steel, WPC
