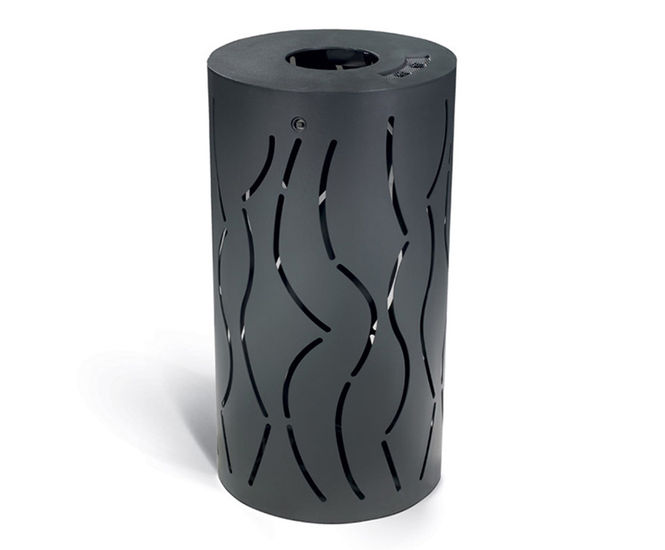

Lab23’s Stile Bin brings a touch of sophistication to waste management in urban spaces. With its sleek and modern design, this street furniture piece seamlessly combines form and function. The Stile Bin is not just a receptacle; it’s a stylish addition to parks, plazas, and public areas, enhancing the overall aesthetic while promoting cleanliness.

Lab23's Stile Bin redefines waste disposal with its contemporary aesthetics and practical features. This street furniture piece stands out as an elegant solution for effective waste management, effortlessly blending into the urban landscape. Crafted with durability and visual appeal in mind, the Stile Bin is a testament to modern design's role in creating cleaner and more attractive public spaces, ensuring a harmonious integration of style and functionality.

Elevate the cleanliness of urban environments with Lab23's Stile Bin, a chic and effective waste management solution. Its sleek design seamlessly integrates into public spaces, offering both functionality and visual appeal. Crafted with durability and aesthetic sensibility, the Stile Bin is a stylish choice for maintaining cleanliness in parks and communal areas. Choose Lab23's Stile Bin for a sophisticated and efficient approach to urban waste disposal.

The inner container is made in galvanized steel of 10/10 thickness, 348 mm diam. and 640 mm height. On the upper part of the inner container there are 2 loops serving as handles to help its extraction. The cover of the STILE bin is made in steel of 30/10 thickness. It is fixed to the structure of the bin through a strong hinge, resulted from the fold of elements in steel of 30/10 thickness with 2 screws M8.The closing of the cover takes place through a spring lock with triangular key. The optional ashtray is placed on the cover, where a specific opening is created to weld, behind it, a pierced steel sheet of 10/10 thickness with holes of 5 mm to put out the cigarette. There are also 2 holes of 20 mm diam. for the insertion of cigarette butts. The container of 15/10 thickness is placed along the rails, welded near the pierced sheet. The bin can fixed to the ground through specific bolts (not provided) to be inserted on holes of 11 mm diam. placed on the bottom. There is the option of adding a base in steel of 30/10 thickness and 50 mm height, curving inwards by 33 mm to the outer perimeter of the bin, or a base in concrete.

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with AkzoNobel RAL colours at choice.

As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.

The galvanized steel used is steel EN10346DX51D+Z and, unless otherwise stated, is not painted.

Specifications

  • Diameter: 460 mm

  • Height: 800 mm

  • Capacity: 50 lt

  • Bin weight: 30 kg

  • Metal base: 3 kg

  • Ashtray capacity: 0,5 lt

  • Material: steel
