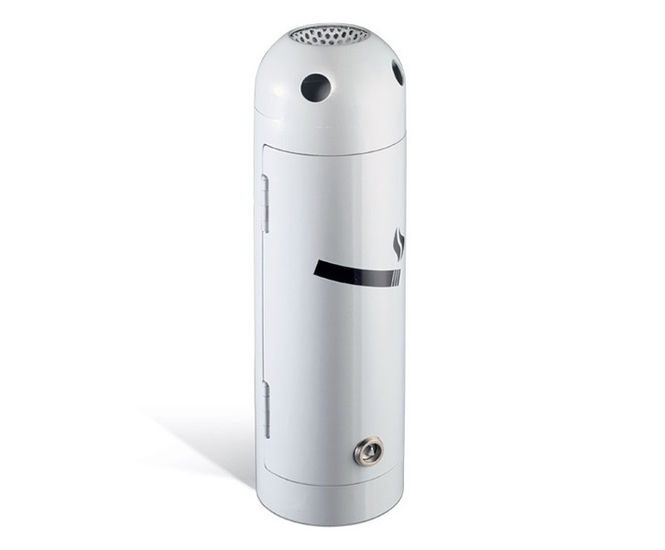

Cigar S ashtray by LAB23

Mounting

Post mounted
Wall mounted

Material

Steel

Capacity

1.4 litres

The Cigar S ashtray can be wall-mounted or pole-mounted. It is made in laser-cut tubular steel of 102×2mm, H 300mm. The upper part of h. 53mm and 15/10 thickness is welded to the structure through continuous welding. It also has a hole of 50mm diam on top, to which a pierced concave steel sheet, with a hole of 20mm dia is welded. From the tubular steel of 102mm dia a door with a hole 100×250mm is created through laser-cut and fixed to it through 2 hinges. On the lower and middle part of the door a triangular key lock is placed. Inside the tubular steel a plate of 30/10 thickness is welded and serves as a support of the tank, made in galvanised steel of 10/10 thickness with 9mm dia and h 220mm. On the back of the ashtray there are 2 holes of 8.5mm dia with 211mm interaxis for fixing to the wall or to the pole with specific bolts (not provided).

For the realisation of this product, steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with a choice of AkzoNobel RAL colours.

The galvanised steel used is EN10346DX51D+Z and, unless otherwise stated, is not painted.
