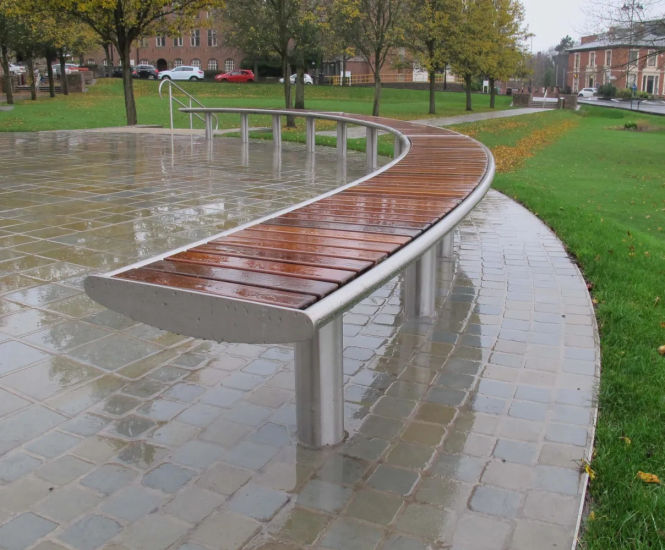

The Zenith Horizon curved bench can be used independently, or combined to create arcs, wave forms, linked circular seating or open seating circles. Made from steel and timber the bench can be specified with internal or external backrests. Designed to accommodate 3-4 people.

Dimensions

Radii: 1.8, 2.4, 3.0, 3.6m

Above ground height: 450mm

Above ground including backrest: 820mm

Below ground: 350mm

Depth: 480 or 540mm

Materials and Finishes

Steelwork

  • Galvanised PPC to any RAL

  • Plastic coated

  • Stainless steel grade 304 or 316 - mirror or satin polished

Slats

  • Iroko timber in smooth planed or UV protective finish

  • WPC

Options

  • Other segment angles/lengths and diameters available

  • Armrests - at end, mid, centre or combination

  • Base plated posts for bolt down installation

  • Anti-skate devices

Refer to PDF for full specification details and options.
