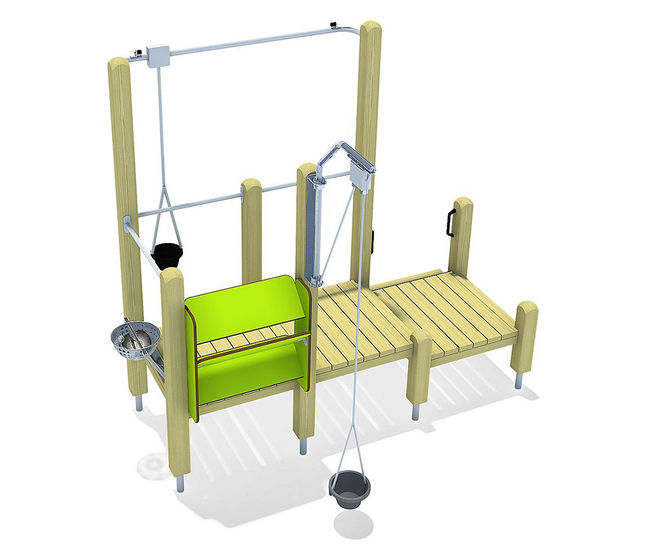

Sand and mud play unit Lara is an outdoor play structure made from pressure-impregnated softwood, stainless steel, and HPL, designed for interactive sand and mud activities for children aged 3 and above. Key features include multiple platforms, sand lift, sand slide, and walk-through protection elements.

  • Outdoor play unit for sand and mud activities for children aged 3+

  • Made from pressure-impregnated softwood, stainless steel, aluminium, and HPL

  • Includes sand lift, sand slide, sieve, and overhead conveyor for varied play

  • Walk-through protection and grip set for safety and accessibility

  • Minimal space required: 5.28 x 4.29 x 2.38 m

  • Freefall height of 58 cm for safety compliance

  • Supplied with galvanised steel post shoes and stainless steel fittings

  • Contains 64% renewable raw materials and 26% recycled content

Technical specifications

Material

softwood pressure-impregnated

Minimal space

5,28x4,29x2,38 m

Fall protection netto

19,5 m²

Freefall height

58 cm

Foundation level

ET 400

Foundation

9x CF or 9x PFs

Soil quality

at least stone

Catalogue index

playo Play unit playo Lara

Applications

  • Public playgrounds

  • School outdoor play areas

  • Parks and recreation spaces

  • Nurseries and early years settings

  • Community play spaces

Dimensions

Minimal space 5.28 x 4.29 x 2.38 m

Impact protection area 19.5 m²

Freefall height 58 cm

Materials

Pressure-impregnated softwood

Stainless steel

Aluminium, plastic coated

HPL (high-pressure laminate)

Galvanised steel

Rubber

Installation

Requires 2 persons, estimated assembly time 5 hours

Foundation: 9x CF or 9x PFs

Ground condition: at least stone

Sustainability

CO2 emissions: 552.3 kg

64% renewable raw materials

26% recycled material

Weighted emission factor: 1.7 kg

Accreditations

Circular Product certification (GKM GmbH)

Certificate: Z2_010651_514_Rev00
