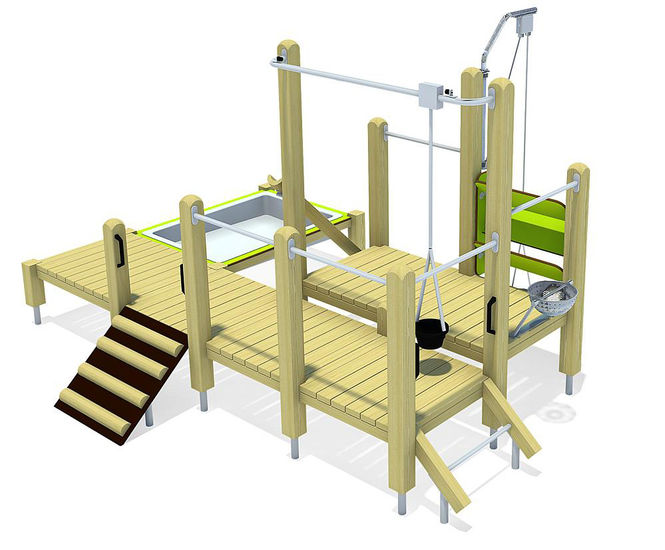

Sand and mud play unit Lina is an outdoor play structure designed for supervised areas, made from pressure-impregnated softwood and stainless steel, with features for sand and water play. Suitable for children from 3 years, it supports creative and sensory play in public or educational settings.

  • Outdoor play unit for sand and mud activities, supporting group and sensory play

  • Includes aqua-basin, sand lift, sand chute, sand slide, and sand sieve for varied play experiences

  • Made from pressure-impregnated softwood, stainless steel, and HPL for durability

  • Designed for supervised use with walk-through protection and safety features

  • Suitable for children aged 3 years and above

  • Minimal space required: 6.50 x 5.63 x 2.38 m

  • Freefall height of 58 cm for safety

Technical specifications

Material

softwood pressure-impregnated

Minimal space

6,50x5,63x2,38 m

Fall protection netto

30,0 m²

Freefall height

58 cm

Foundation level

ET 400

Foundation

17x CF or 17x PFs

Soil quality

at least stone

Catalogue index

playo Play unit playo Lina

Applications

  • Public playgrounds

  • Nurseries and preschools

  • Primary schools

  • Parks and recreation areas

  • Outdoor learning environments

Dimensions

Minimum space 6.50 x 5.63 x 2.38 m

Freefall height 58 cm

Impact protection area 30.0 m²

Materials

Pressure-impregnated softwood

Stainless steel

HPL (high-pressure laminate)

Plastic (mud tray)

Aluminium (grips, plastic coated)

Galvanised steel (post shoes)

Rubber (overhead conveyor, sand lift)

Installation

Requires 2 persons, estimated 8 hours assembly

Foundations: 17x CF or 17x PFs

Ground conditions: at least stone

Sustainability

CO2 emissions: 1045.1 kg

Share of renewable raw materials: 65%

Share of recycled material: 22%

Weighted emission factor: 1.7 kg

Accreditations

Circular Product certification (GKM GmbH)

Certificate: Z2_010651_514_Rev00
