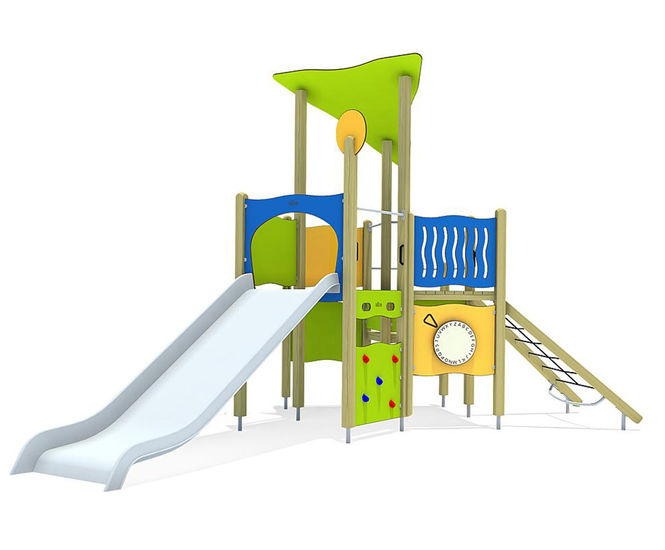

Play unit Luca, solo is an outdoor play structure made from pressure-impregnated softwood and high-pressure laminate (HPL), designed for children from 3 years. Key features include climbing panels, slides, walk-through protection, and various play panels, with a focus on safety and durability for public play spaces.

  • Outdoor play structure for children aged 3 and above

  • Made from pressure-impregnated softwood, HPL, stainless steel, and aluminium

  • Includes climbing panels, slides, ladders, and interactive play panels

  • Walk-through protection and safety features integrated

  • Designed for durability in public and commercial outdoor environments

  • Certified for circular product sustainability

Technical specifications

Material

softwood pressure-impregnated

Minimal space

9,37x7,12x3,25 m

Fall protection netto

42,0 m²

Freefall height

145 cm

Foundation level

ET 400

Foundation

13x CF or 13x PFs

Soil quality

at least sand

Catalogue index

playo Play unit playo Luca

Applications

  • Public playgrounds

  • School outdoor areas

  • Parks and recreational spaces

  • Community centres

  • Childcare facilities

Dimensions

Minimum space 9.37 x 7.12 x 3.25 m

Freefall height 145 cm

Impact protection area 42.0 m²

Materials

Pressure-impregnated softwood

High-pressure laminate (HPL)

Stainless steel

Aluminium, plastic coated

Polyester-coated steel cable

Installation

Requires 2 people, estimated assembly time 8 hours

Suitable for installation on lawn or sand

Requires 13 concrete or point foundations

Sustainability

CO2 emissions 1085.4 kg

61% renewable raw materials

10% recycled material

Accreditations

Circular Product certification (GKM GmbH)

Certificate Z2_010651_0526_Rev00
