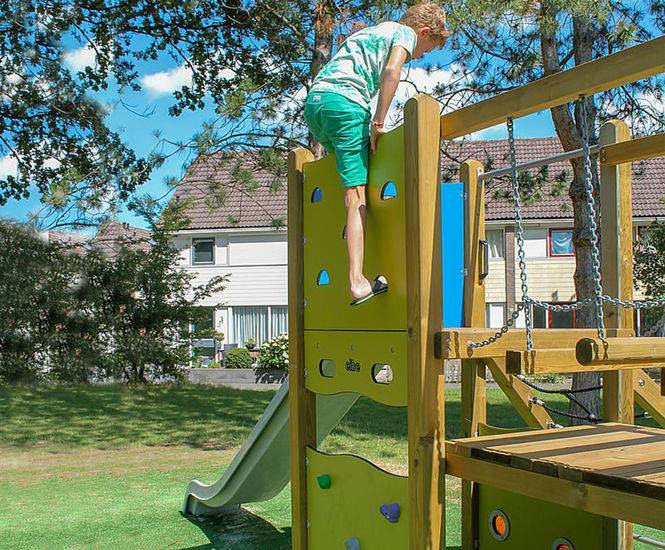

Play unit Tom, solo is an outdoor play structure made from pressure-impregnated softwood and stainless steel, designed for children aged 3 and above. Key features include climbing panels, a wobbly bridge, net ascent, and multiple play panels, supporting active and imaginative play in public or educational settings.

  • Outdoor play structure for children aged 3+

  • Includes climbing panels, wobbly bridge, net ascent, and play panels

  • Made from pressure-impregnated softwood, stainless steel, and HPL

  • Designed for safety with walk-through and step-through protection

  • Requires minimal space of 11.39 x 5.25 x 4.04 m

  • Supports physical activity and social interaction

Technical specification

Material

softwood pressure-impregnated

Minimal space

11,39x5,25x4,04 m

Fall protection netto

42,5 m²

Freefall height

224 cm

Foundation level

ET 400

Foundation

12x CF or 12x PFs

Soil quality

at least sand

Catalogue index

playo Play unit playo Tom, Solo

Applications

  • Public playgrounds

  • School play areas

  • Parks and recreation spaces

  • Community centres

  • Outdoor childcare facilities

Dimensions

Minimum space 11.39 x 5.25 x 4.04 m

Freefall height 224 cm

Impact protection area 42.5 m²

Materials

Pressure-impregnated softwood

Stainless steel

HPL (high-pressure laminate)

Aluminium (plastic coated)

Perspex

Polyester-coated steel cable

Installation

Requires 2 persons, estimated assembly time 7 hours

Foundation: 12x CF or 12x PFs

Ground condition: at least sand

Sustainability

CO2 emissions 886 kg

69% renewable raw materials

11% recycled material

Circular Product certification (GKM GmbH)

Accreditations

Certificate: Z2_010651_0526_Rev00
