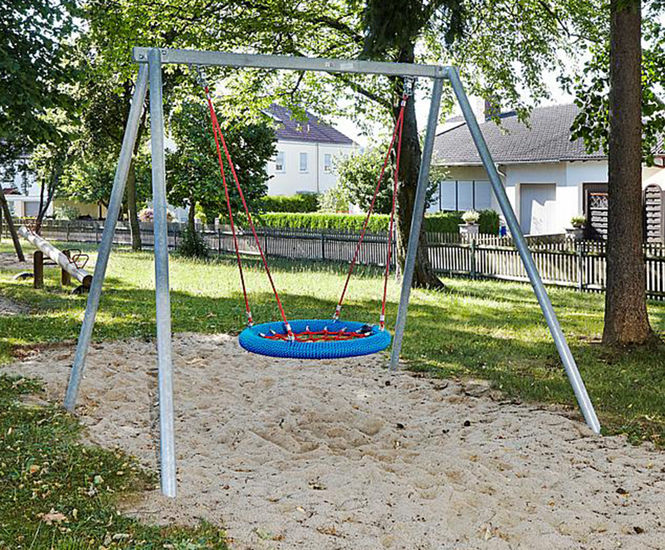

ecorino double swing with nest seat Ø 100 cm is a playground swing set made from galvanised steel, designed for group play and relaxation. Includes a 100 cm diameter nest seat with polyester-coated steel cable, suitable for children from 3 years. Certified to EN1176 and designed for outdoor use in public or commercial spaces.

  • Playground swing set with nest seat for multiple users

  • Made from galvanised steel for durability and weather resistance

  • 100 cm diameter nest seat with shock-absorbing, plastic-coated steel cable

  • Certified to EN1176 safety standard

  • Minimal installation space required: 3.33 x 8.00 x 3.68 m

  • Suitable for children aged 3 years and above

  • High recycled material content (79%)

Technical specifications

Material

galvanised steel

Minimal space

3,33x8,00x3,68 m

Fall protection netto

20,0 m²

Freefall height

146 cm

Biggest part

343x22x13 cm

Heaviest part

22 kg

Foundation level

ET 700

Foundation

4x CF

Soil quality

at least sand

Catalogue index

ecorino Double swing Swing

Applications

  • Public playgrounds

  • Parks and recreation areas

  • School outdoor spaces

  • Commercial play areas

  • Community centres

Dimensions

Minimal space 3.33 x 8.00 x 3.68 m

Freefall height 146 cm

Biggest part 343 x 22 x 13 cm

Heaviest part 22 kg

Performance

Impact protection area 20.0 m²

Materials

Galvanised steel frame and joints

Polyester-coated steel cable nest seat

Polypropylene rope, aluminium press clamp

Installation

Requires 4x CF foundations

Ground conditions: at least turf or sand

Assembly: 2 persons, approx. 2 hours

Accreditations

EN1176 certified

TÜV product service

Sustainability

CO2 emissions: 894.8 kg

Recycled material content: 79%

Share of renewable raw materials: 0%
