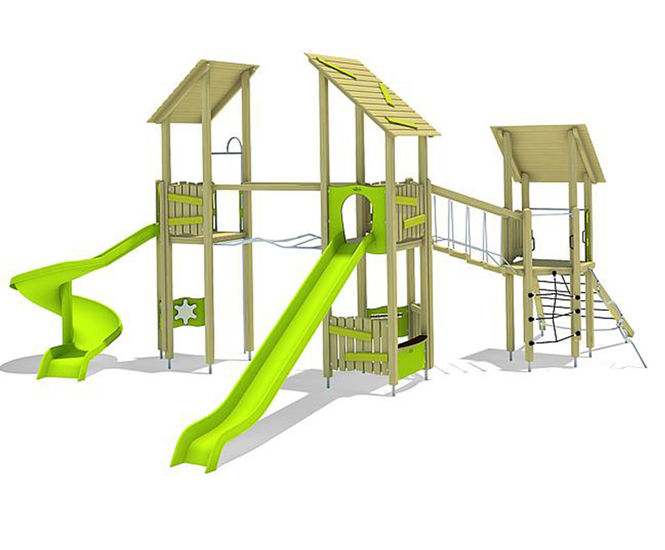

eibe's Play unit Kibo, solo is a large outdoor play structure made from pressure-impregnated softwood, larch, and stainless steel, designed for children aged 3 and above. Includes multiple play elements such as platforms, bridges, ladders, and panels, supporting varied physical activity and group play. Suitable for public playgrounds and conforms to safety standards.

  • Multiple play elements encourage climbing, balancing, and imaginative play

  • Made from durable, pressure-impregnated softwood and stainless steel

  • Includes safety features such as protective devices and impact protection

  • Large play area supports group use

  • Suitable for children from 3 years

  • Complies with relevant safety certification

Applications

  • Public playgrounds

  • Parks and recreation areas

  • School outdoor spaces

  • Community play areas

Technical data

Material

softwood pressure-impregnated

Minimal space

11,56x11,31x4,50 m

Fall protection netto

70,5 m²

Freefall height

195 cm

Biggest part

0,15x0,15x4,84 m

Foundation level

ET 400

Foundation

19x CF or 19x PFs

Soil quality

at least sand

Catalogue index

ecorino Play unit ecorino Kibo

Physical attributes

Minimum space required is 11.56 x 11.31 x 4.50 m. Freefall height is 195 cm. Impact protection area is 70.5 m². Largest part measures 0.15 x 0.15 x 4.84 m.

Materials

Made from pressure-impregnated softwood, larch, stainless steel, aluminium (plastic coated), high pressure laminate (HPL), and perspex. Includes polyester-coated steel cable and galvanised steel components.

Installation

Requires 19 concrete or prefabricated foundations. Recommended for installation on sand. Assembly by two people takes approximately 17 hours.

Accreditations

Certified to Z2_010651_ safety standard.
