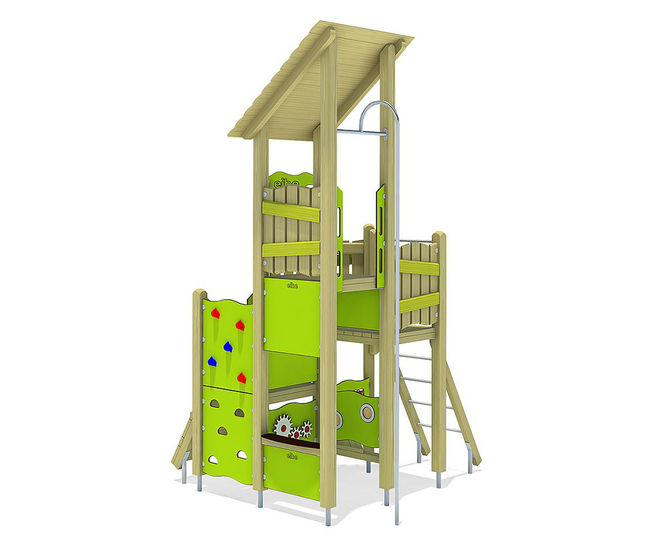

Play unit Mont Blanc is a modular outdoor play structure made from pressure-impregnated softwood, larch, and high pressure laminate, designed for children aged 3 and above. Key features include multiple climbing, sliding, and interactive play elements, with a focus on durability and safety for public playgrounds.

  • Outdoor play structure for children aged 3+

  • Made from pressure-impregnated softwood, larch, stainless steel, and high pressure laminate (HPL)

  • Includes climbing panels, fireman's pole, ramp, ladder, and interactive play panels

  • Galvanised steel post shoes and stainless steel fittings for enhanced durability

  • Modular design with multiple platforms and parapets

  • Impact protection area of 23.0 m² and freefall height of 195 cm

  • Suitable for installation on sand or similar ground conditions

Technical specifications

Material

softwood pressure-impregnated

Minimal space

5,42x5,79x4,00 m

Fall protection netto

23,0 m²

Freefall height

195 cm

Biggest part

0,15x0,15x4,84 m

Foundation level

ET 400

Foundation

13x CF or 13x PFs

Soil quality

at least sand

Catalogue index

ecorino Play unit ecorino Mont Blanc

Applications

  • Public playgrounds

  • School outdoor play areas

  • Parks and recreation spaces

  • Community centres

  • Residential developments with shared play spaces

Dimensions

Minimum space 5.42 x 5.79 x 4.00 m

Biggest part 0.15 x 0.15 x 4.84 m

Performance

Freefall height 195 cm

Impact protection area 23.0 m²

Materials

Pressure-impregnated softwood

Larch

High pressure laminate (HPL)

Stainless steel

Galvanised steel

Aluminium (plastic coated)

Perspex

Robinia (for counting rings)

Installation

Requires 2 persons, estimated 10 hours assembly

Foundations: 13x CF or 13x PFs

Ground condition: at least sand

Accreditations

Certificate: Z2_010651_514_Rev00

Sustainability

CO2 emissions 804 kg

Share of renewable raw materials 70%

Share of recycled material 11%
